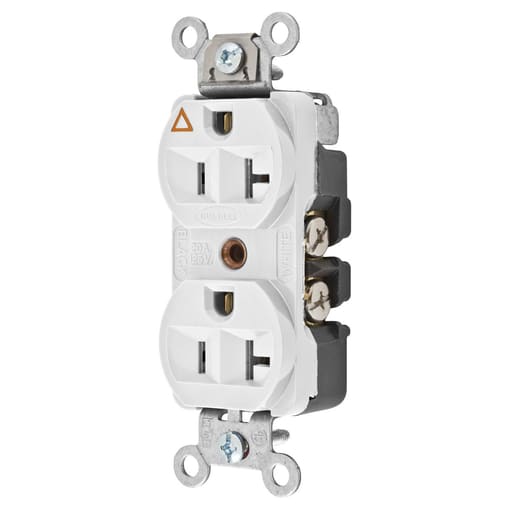

Hubbell Wiring Device - Hubbell CR5352IGW 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Isolated Ground Duplex Receptacle

12-Digit UPC:

783585387185

Amperage:

20 Amp

Applications:

Commercial Grade

Catalog Number:

CR5352IGW

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB CR5352IGW DUP RCPT, IG, CONST GRD, 20A 125V, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial

Heights:

1.05 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade and Twist-Lock

Tc Connection:

Back & Side Wired

Type:

Traditional

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.33 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_26729149
