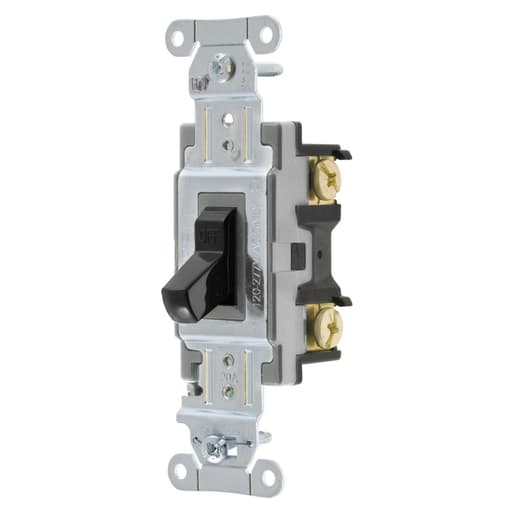

Hubbell Wiring Device - Hubbell CS120-BK 20A 120/277V SP Toggle Switch. Spec Grade Commercial Series - Black
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585189178
Actuator - Toggle
Amperage - 20 Amp
Applications - Commercial Spec Grade
Catalog Number - CS120BK
Packaging
1 ea
EAN
00783585189178
Part #
158431
Catalog #
CS120BK
Commercial reference
CS120BK
12-Digit UPC:
783585189178
Actuator:
Toggle
Amperage:
20 Amp
Applications:
Commercial Spec Grade
Catalog Number:
CS120BK
Color:
Black
Conductor Size:
14-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB CS120BK SWITCH, SPEC, SP, 20A 120/277V, BK
Enclosure:
None
Family Brand Name:
Hubbell Incorporated
Grade:
Commercial
Heights:
1.83 Inch
Length:
4.18 Inch
Material:
Nylon
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
1-1 Pole
Size:

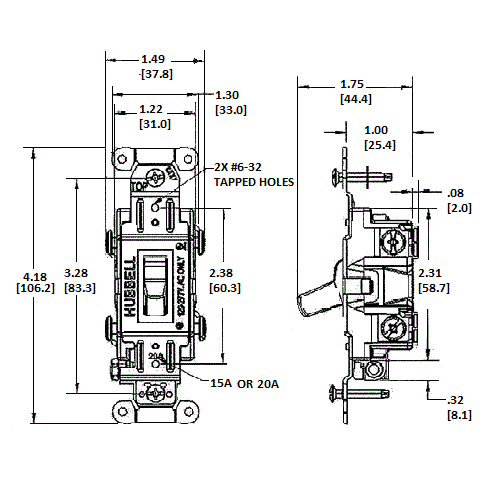

4.18 in x 1.49 in x 1.83 in
Sub Brand:
AC Toggle Switches
Tc Connection:
Side Wired Only
Type:
Toggle
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.49 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_25482877
