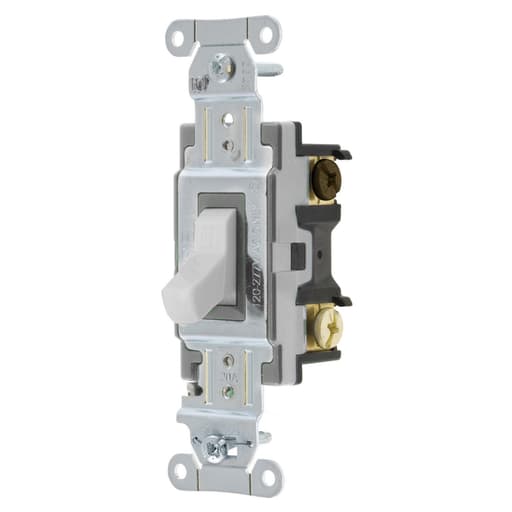

Hubbell Wiring Device - Hubbell CS320-W 20A 120/277V 3Way White Toggle Switch. Spec Grade Commercial Series
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585902142
Actuator - Toggle
Amperage - 20 Amp
Applications - Commercial Spec Grade
Catalog Number - CS320W
Packaging
1 ea
EAN
00783585902142
Part #
213053
Catalog #
CS320W
Commercial reference
CS320W
12-Digit UPC:
783585902142
Actuator:
Toggle
Amperage:
20 Amp
Applications:
Commercial Spec Grade
Catalog Number:
CS320W
Color:
White
Conductor Size:
14-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB CS320W 3W 420A 120/277V
Enclosure:
None
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Commercial
Heights:
1.83 Inch
Length:
4.18 Inch
Material:
Nylon
Number of Poles:
1-1 Pole
Size:
Standard Sized
Sub Brand:
AC Toggle Switches
Tc Connection:
Side Wired Only
Type:
General Purpose, 2 Position, 3 Way, Standard
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.49 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_25397262
