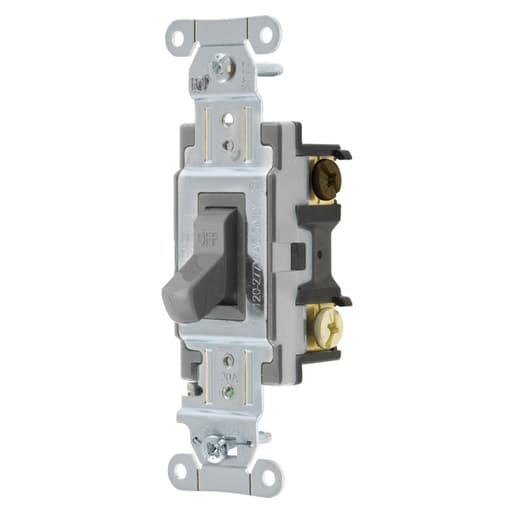

Hubbell Wiring Device - Hubbell CS320GY 20 Amp 120/277 VAC 3-Way Gray Toggle Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585902272

  • Actuator - Toggle

  • Amperage - 20 Amp

  • Applications - Commercial Spec Grade

  • Catalog Number - CS320GY

Packaging

  • 1 ea

EAN

00783585902272

Part #

154470

Catalog #

CS320GY

Commercial reference

CS320GY

12-Digit UPC:

783585902272

Actuator:

Toggle

Amperage:

20 Amp

Applications:

Commercial Spec Grade

Catalog Number:

CS320GY

Color:

Gray

Conductor Size:

14-10 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB CS320GY SWITCH, SPEC, 3W, 20A 120/277V, GY

Enclosure:

None

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial

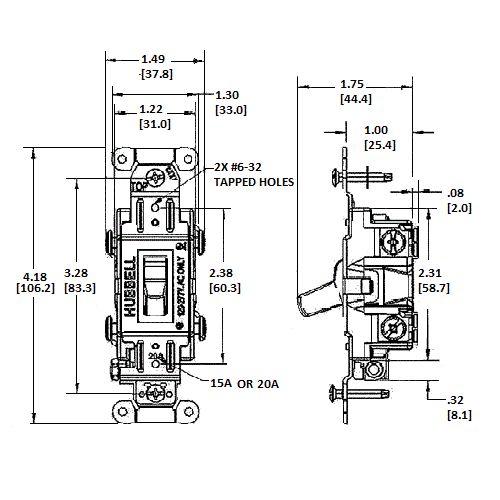

Heights:

1.83 Inch

Length:

4.18 Inch

Material:

Nylon

Number of Poles:

1 Pole

Size:

Standard Sized

Sub Brand:

AC Toggle Switches

Tc Connection:

Side Wired Only

Type:

General Purpose, 2-Position, 3-Way, Standard

Voltage:

120-277 Volt

Wattage:

5540 Watt

Widths:

1.49 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_25398492

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Gray Toggle. Features: Thread cleaning captive mounting screw; Abuse resistant nylon toggle; Steel, zinc plated bridge is corrosion resistant
