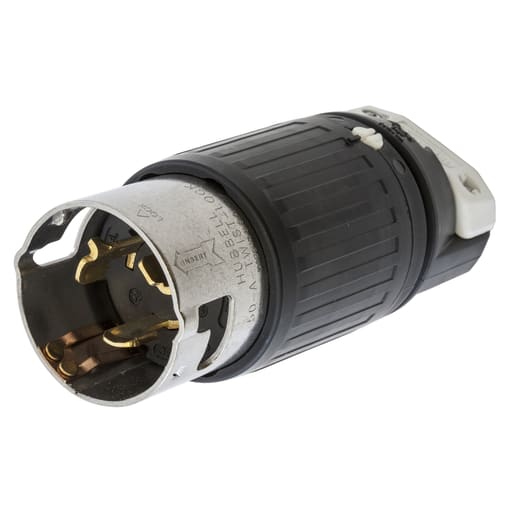

Hubbell Wiring Device - Hubbell CS6365-C 50A 125/250V AC Twist-Lock Black Nylon Plug, Straight

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585827995

  • Amperage - 50 Amp

  • Applications - Extra Heavy Duty Industrial Application

  • Catalog Number - CS6365C

  • Color - Black,White

Packaging

  • 1 ea

EAN

00783585827995

Part #

213062

Catalog #

CS6365C

Commercial reference

CS6365C

12-Digit UPC:

783585827995

Amperage:

50 Amp

Applications:

Extra Heavy Duty Industrial Application

Catalog Number:

CS6365C

Color:

Black,White

Conductor Size:

6 AWG

Country of Origin:

USA

Current:

50 Amp

ERP_productname:

HUB CS6365C LKG PLUG 50S250A

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.56 Inch

Length:

6.37 Inch

Material:

Composite

Mounting Type:

Cord

Number of Phases:

1 Phase

Number of Poles:

3 Pole

Number of Wires:

4 Wire

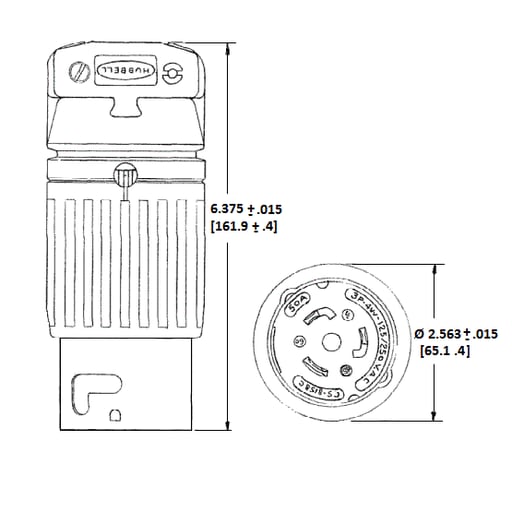

Size:

6.37 in x 2.56 in x 2.56 in

Sub Brand:

Twist-Lock®, Insulgrip®

Tc Connection:

Terminal Screws

Type:

Straight Angled

Voltage:

125/250 Volt

Wattage:

12500 Watt

Widths:

2.56 in

Wire Size:

10-6 AWG

SoneparProductId:

SKU_US_25357908

Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A, 125/250V 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White Features: Tough nylon housing offers better impact qualities; Stainless steel shroud restricts mismating with the wrong device; Heavy duty two-piece external cord clamp provides maximum strain relief; Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands; Thermoplastic polyester interior provides heat resistance and impact strength; Standard Product
