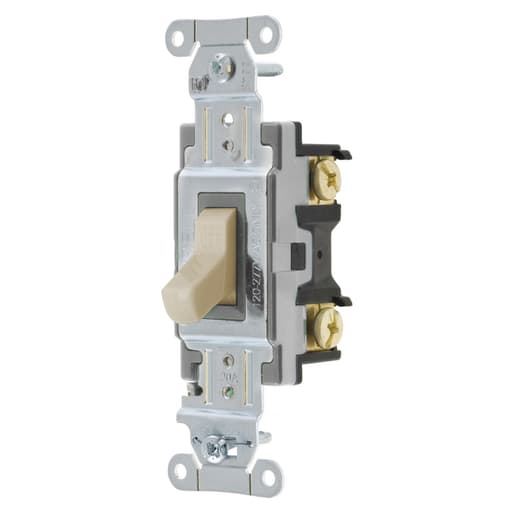

Hubbell Wiring Device - Hubbell CSB120AL SWITCH, SPEC, SP, 20A 120/277V, B+S, AL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585154107
Actuator - Toggle
Amperage - 20 Amp
Applications - Commercial Spec Grade
Catalog Number - CSB120AL
Packaging
1 ea
EAN
00783585154107
Part #
158454
Catalog #
CSB120AL
Commercial reference
CSB120AL
12-Digit UPC:
783585154107
Actuator:
Toggle
Amperage:
20 Amp
Applications:
Commercial Spec Grade
Catalog Number:
CSB120AL
Color:
Almond
Conductor Size:
14-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB CSB120AL SWITCH, SPEC, SP, 20A 120/277V, B+S, AL
Enclosure:
None
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Commercial Specification

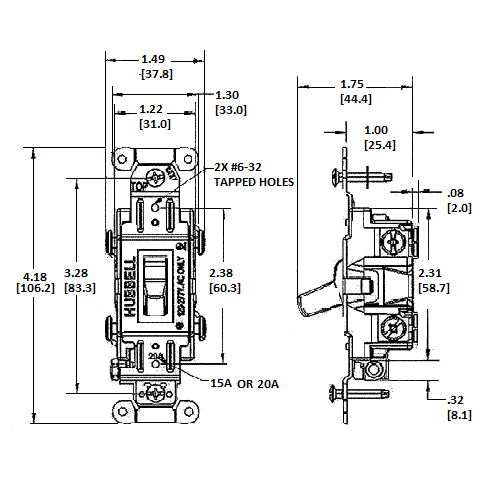

Heights:
1.83 Inch
Length:
4.18 Inch
Material:
Nylon
Number of Poles:
1 Pole
Size:
Standard Sized
Sub Brand:
AC Toggle Switches
Tc Connection:
Back and Side Wired
Type:
General Purpose, Standard, 2-Position
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.49 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_29602268
