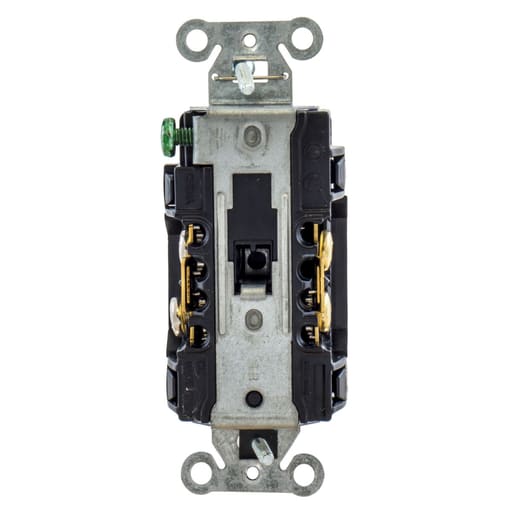

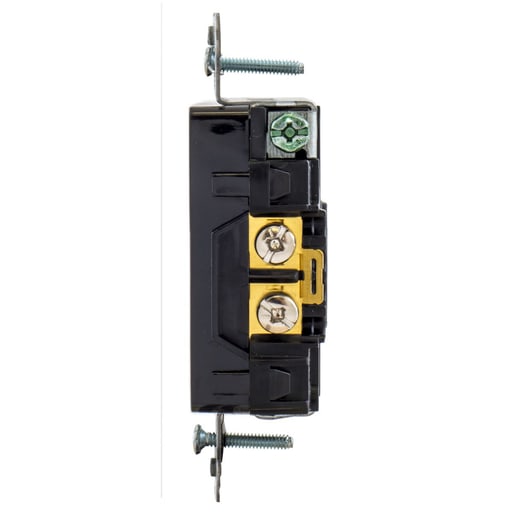

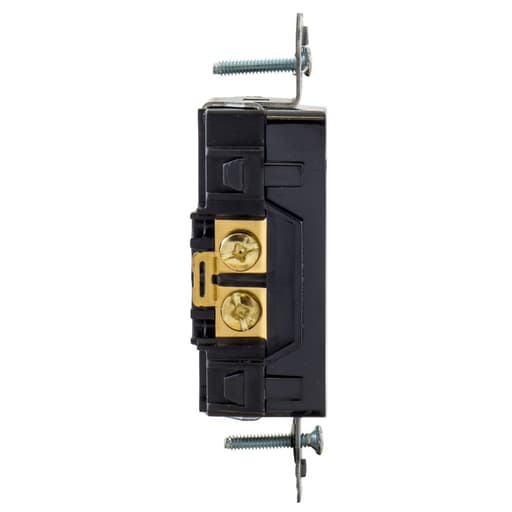

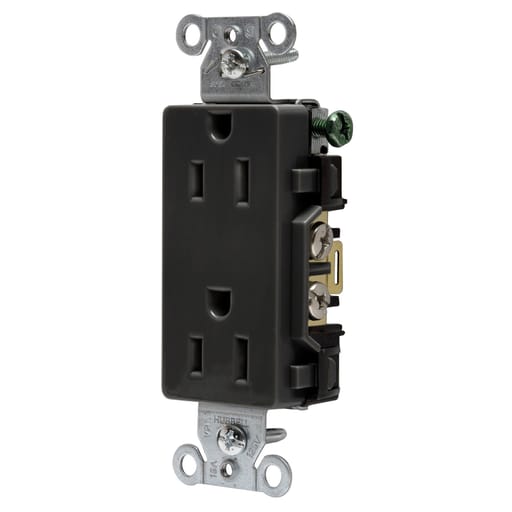

Hubbell Wiring Device - Hubbell DR15BLKDECO Receptacle, COMM GRD, 15A 125V, 5-15R, BK

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585127835

  • Amperage - 15 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - DR15BLK

  • Color - Black

Packaging

  • 1 ea

EAN

00783585127835

Part #

193950

Catalog #

DR15BLK

Commercial reference

DR15BLK

12-Digit UPC:

783585127835

Amperage:

15 Amp

Applications:

Commercial Specification Grade

Catalog Number:

DR15BLK

Color:

Black

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB DR15BLK DECO RCPT, COMM GRD, 15A 125V, 5-15R, BK

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial Specification

Heights:

3.28 Inch

Horsepower:

0.5 hp

Length:

1.29 Inch

Material:

Nylon

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Decorator

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.06 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_29954456

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black, Single Pack. Features: Aesthetic Style Line® decorator design; Smooth face; Triple wipe contacts - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Industry Standard(s): Certified to CSA, C22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
