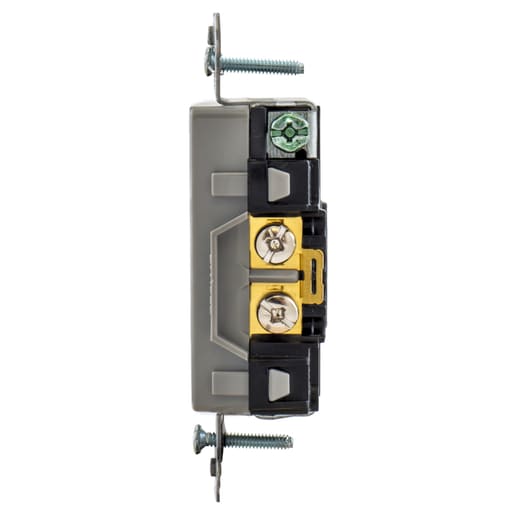

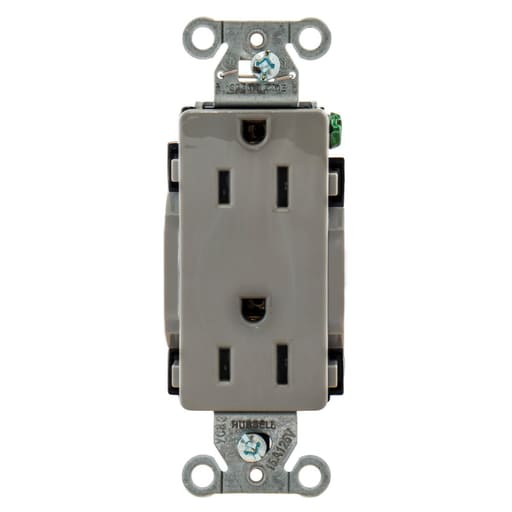

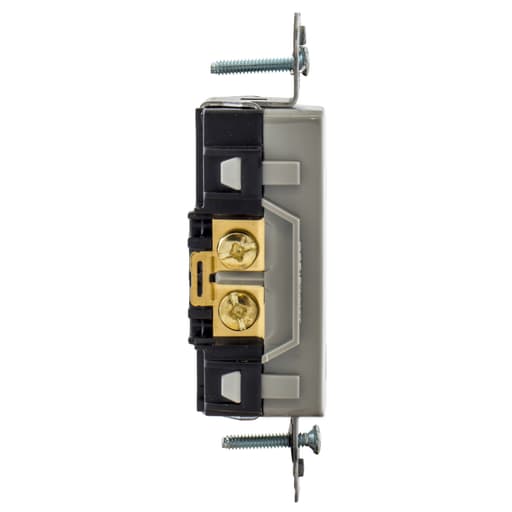

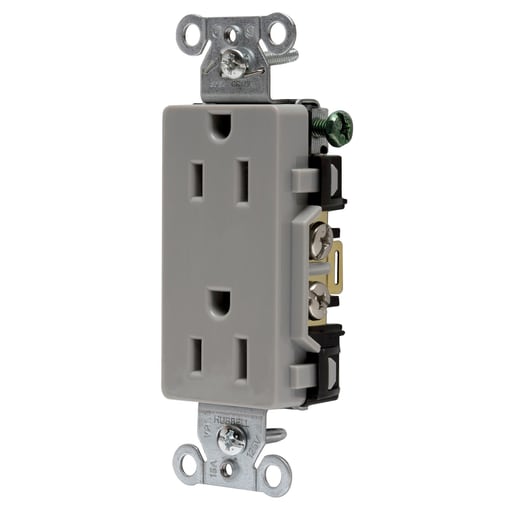

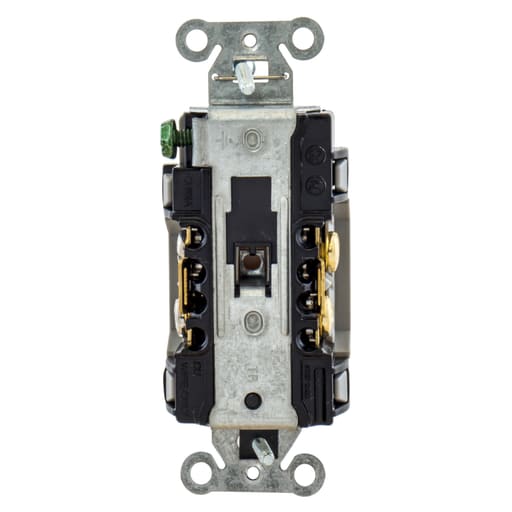

Hubbell Wiring Device - Hubbell DR15GRYDECO Receptacle, COMM GRD, 15A 125V, 5-15R, GY

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585127811

  • Amperage - 15 Amp

  • Applications - For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse

  • Catalog Number - DR15GRY

  • Color - Gray

Packaging

  • 1 ea

EAN

00783585127811

Part #

164681

Catalog #

DR15GRY

Commercial reference

DR15GRY

12-Digit UPC:

783585127811

Amperage:

15 Amp

Applications:

For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse

Catalog Number:

DR15GRY

Color:

Gray

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB DR15GRY DECO RCPT, COMM GRD, 15A 125V, 5-15R, GY

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial Specification

Heights:

3.28 Inch

Horsepower:

0.5 hp

Length:

1.29 Inch

Material:

Nylon

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Decorator

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.06 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_25219405

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack. Industry Standard(s): Certified to CSA, C22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Aesthetic Style Line® decorator design; Smooth face; Triple wipe contacts
