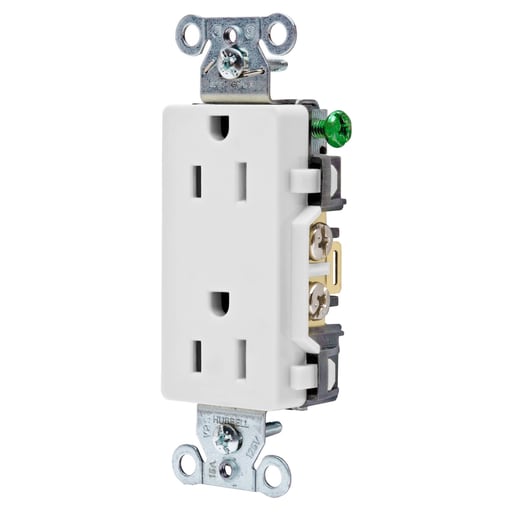

Hubbell Wiring Device - Hubbell DR15WHI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Decorator Straight Blade Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585127828

  • Amperage - 15 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - DR15WHI

  • Color - White

Packaging

  • 1 ea

EAN

00783585127828

Part #

200061

Catalog #

DR15WHI

Commercial reference

DR15WHI

12-Digit UPC:

783585127828

Amperage:

15 Amp

Applications:

Commercial Specification Grade

Catalog Number:

DR15WHI

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

15 Amp

ERP_productname:

HUB DR15WHI DECO RCPT COMM GRD 15A 125V 5-15R WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial

Heights:

3.28 Inch

Horsepower:

0.5 hp

Length:

1.29 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Decorator

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.06 in

Wire Size:

14-10 W

SoneparProductId:

SKU_US_26766207

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack. Industry Standard(s): Certified to CSA, C22.2, No. 42; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186 - Features: Aesthetic Style Line® decorator design; Smooth face; Triple wipe contacts - Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C, minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
