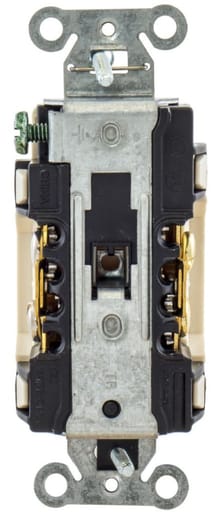

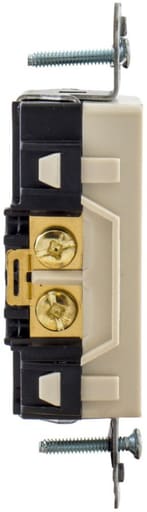

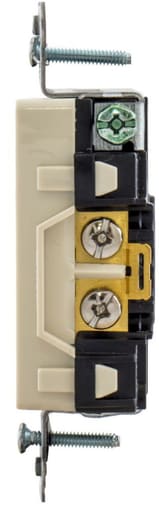

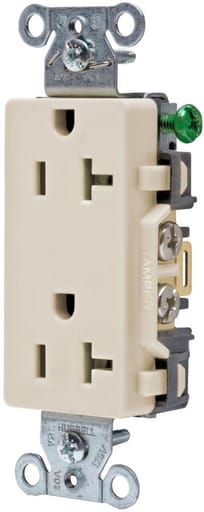

Hubbell Wiring Device - Hubbell DR20LADECO Receptacle, COMM GRD, 20A 125V, 5-20R, LA

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585127934

  • Amperage - 20 Amp

  • Applications - Commercial Specification Grade

  • Catalog Number - DR20LA

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00783585127934

Part #

148376

Catalog #

DR20LA

Commercial reference

DR20LA

12-Digit UPC:

783585127934

Amperage:

20 Amp

Applications:

Commercial Specification Grade

Catalog Number:

DR20LA

Color:

Light Almond

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB DR20LA DECO RCPT, COMM GRD, 20A 125V, 5-20R, LA

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Commercial/Industrial

Heights:

1.29 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Decorator

Voltage:

125 Volt

Wattage:

2500 Watt

Widths:

1.06 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_32230734

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack. Additional Information: Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C - Features: Easy Installation, Easy Access Split Circuit Tab, Fork Terminal Capable, Self-Grounding Staple; Durable Construction, Nylon Face and Base; Sturdy Construction, Wrap Around Galvanized Steel Strap; Single Tab Break-Off Ears; Self-Grounding Staple; Easy Access Split Circuit Tab; Fork Terminal Capable; Oversized Terminal Screw; Permanently Marked Receptacles for Automatic Outlet Control System; These Receptacles are Embossed with the Universally Recognized Power Symbol and the Word \"Controlled\" Remains Clearly Visible after Installation
