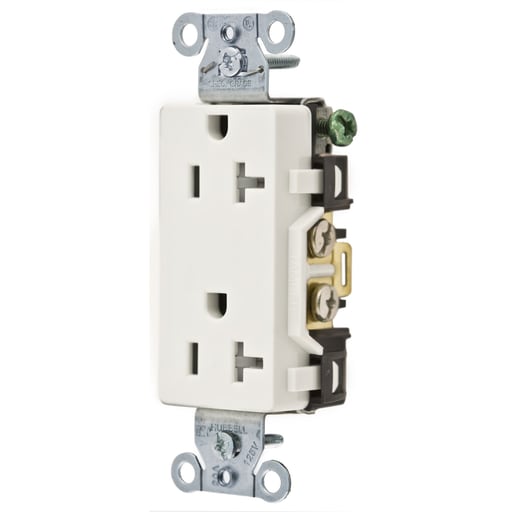

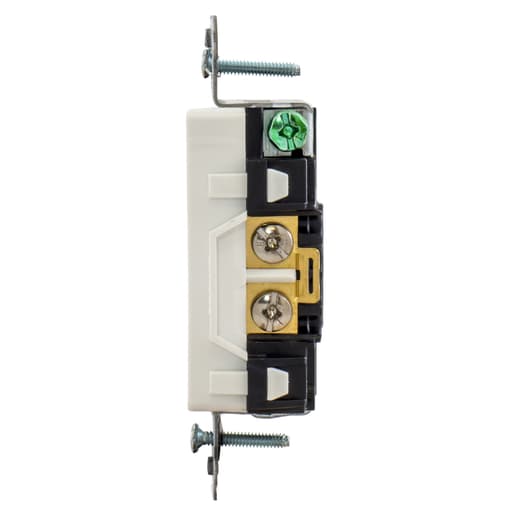

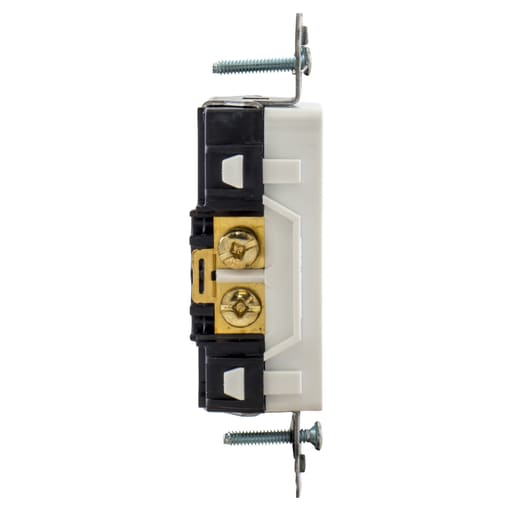

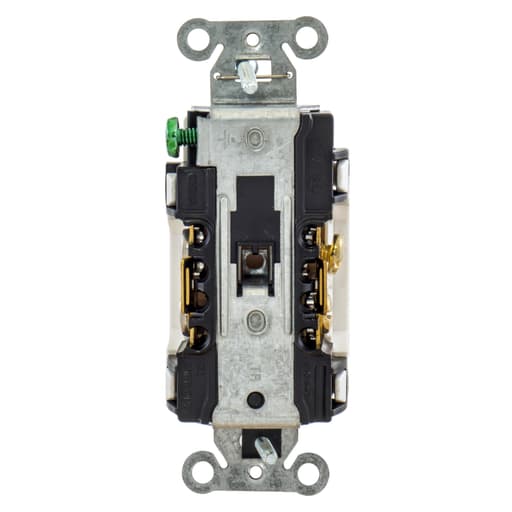

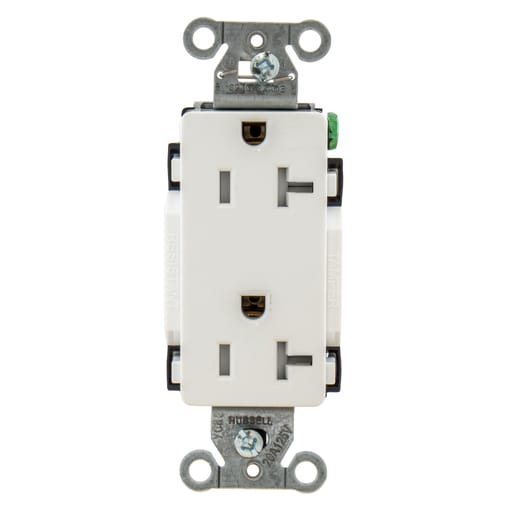

Hubbell Wiring Device - Hubbell DR20WHITR 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Decorator Straight Blade Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585144443

  • Amperage - 20 Amp

  • Applications - For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse

  • Catalog Number - DR20WHITR

  • Color - White

Packaging

  • 1 ea

EAN

00783585144443

Part #

122878

Catalog #

DR20WHITR

Commercial reference

DR20WHITR

12-Digit UPC:

783585144443

Amperage:

20 Amp

Applications:

For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse

Catalog Number:

DR20WHITR

Color:

White

Conductor Size:

14-12 AWG

Country of Origin:

China

Current:

20 Amp

ERP_productname:

HUB DR20WHITR TAMP RES, DECO FACE, 20A 125V,WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Finish:

Matte

Grade:

Commercial/Specification

Heights:

1.29 Inch

Horsepower:

1 hp

Length:

3.28 Inch

Material:

Thermoplastic

Mounting Type:

Screw, Flush

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire Grounding

Size:

Standard

Sub Brand:

Straight Blade

Tc Connection:

Back and Side Wired

Type:

Decorator Tamper-Resistant, Self Grounding

Voltage:

125 Volt

Wattage:

2000 Watt

Widths:

1.14 in

Wire Size:

12-10 AWG

SoneparProductId:

SKU_US_25208629

Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack. Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current; Electrical - Dielectric Voltage - Withstands 2,000V minimum; Environmental - Flammability - UL 94 V-2; Environmental - Operating Temperatures - Maximum continuous 75±C minimum -40±C (w/o impact); Mechanical - Product Identification - Ratings are a permanent part of the device; Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only; Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA - Features: Tamper-resistant shutter complies with national electrical code requirements; Aesthetic Style Line® decorator design; Smooth face; Triple wipe contacts - Industry Standard(s): Certified to CSA, C22.2, No. 42; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
