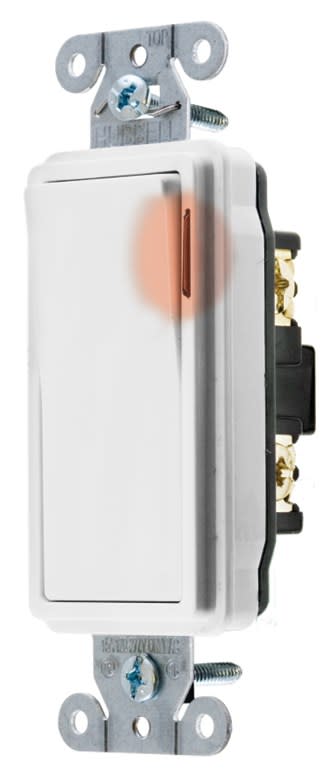

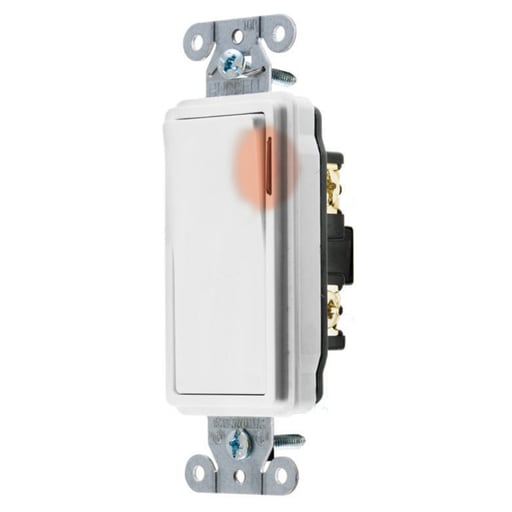

Hubbell Wiring Device - Hubbell DS120PLW SWITCH, DECO SER, SP, 20A 120/277V, PLWH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585187877
Actuator - Rocker
Amperage - 20 Amp
Applications - Commercial Heavy Duty
Catalog Number - DS120PLW
Packaging
1 ea
EAN
00783585187877
Part #
301378
Catalog #
DS120PLW
Commercial reference
DS120PLW
12-Digit UPC:
783585187877
Actuator:
Rocker
Amperage:
20 Amp
Applications:
Commercial Heavy Duty
Catalog Number:
DS120PLW
Color:
White
Conductor Size:
14-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB DS120PLW SWITCH, DECO SER, SP, 20A 120/277V, PLWH
Enclosure:
None
Family Brand Name:
Hubbell Incorporated
Heights:
1.54 Inch
Length:
4.28 Inch
Material:
Thermoplastic
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
1-1 Pole

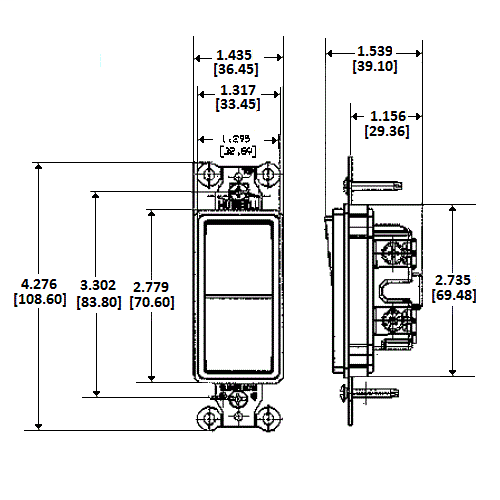

Size:
4.28 in x 1.43 in x 1.54 in
Sub Brand:
AC Decorator Switches
Tc Connection:
Terminal Screw
Type:
Non-Reversing
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.43 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_30081722
