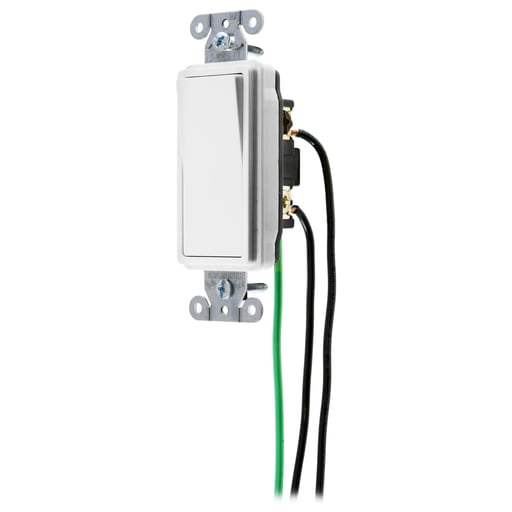

Hubbell Wiring Device - Hubbell DSL320W SWITCH, DECO, 3W, 20A 120/277V, WH, WL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585187082
Actuator - Rocker
Amperage - 20 Amp
Applications - 8" #12 AWG THHN
Catalog Number - DSL320W
Packaging
50 ea
EAN
00783585187082
Part #
420044
Catalog #
DSL320W
Commercial reference
DSL320W
12-Digit UPC:
783585187082
Actuator:
Rocker
Amperage:
20 Amp
Applications:
8" #12 AWG THHN
Catalog Number:
DSL320W
Color:
White
Conductor Size:
12 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB DSL320W SWITCH, DECO, 3W, 20A 120/277V, WH, WL
Enclosure:
None
Family Brand Name:
Hubbell Incorporated
Heights:
1.61 Inch
Length:
4.12 Inch
Material:
Polycarbonate
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
1-1 Pole
Size:

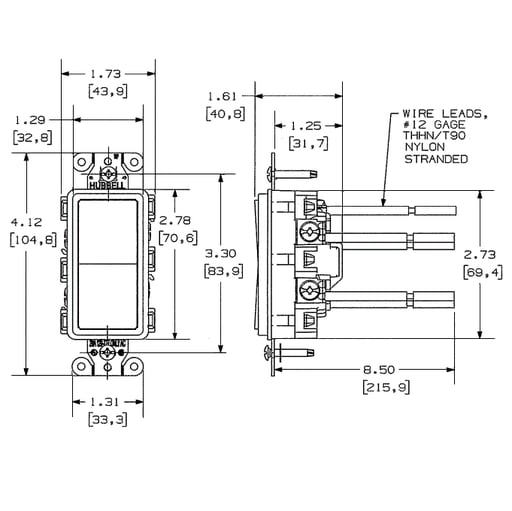

4.12 in x 1.73 in x 1.61 in
Sub Brand:
AC Decorator Switches
Tc Connection:
Pre-Wired Leads
Type:
Non-Reversing
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.500 in
Wire Size:
12 AWG
SoneparProductId:
SKU_US_32248589
