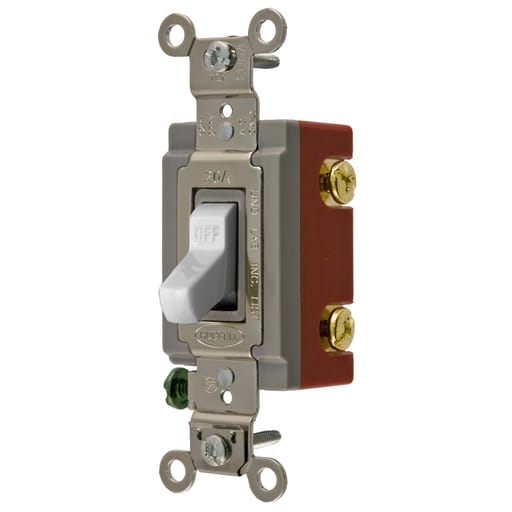

Hubbell Wiring Device - Hubbell HBL1222OWDP TOG, IND GRD, 20A 120/277V, OW
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585189123
Amperage - 20 Amp
Applications - Back and Side Wired
Catalog Number - HBL1222OW
Color - Red
Packaging
1 ea
EAN
00783585189123
Part #
158842
Catalog #
HBL1222OW
Commercial reference
HBL1222OW
12-Digit UPC:
783585189123
Amperage:
20 Amp
Applications:
Back and Side Wired
Catalog Number:
HBL1222OW
Color:
Red
Current:
20 Amp
ERP_productname:
HUB HBL1222OW DP TOG, IND GRD, 20A 120/277V, OW
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Industrial
Heights:
1.87 Inch
Length:
4.06 Inch
Material:
Thermoset,Thermoset
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
2 Pole
Size:

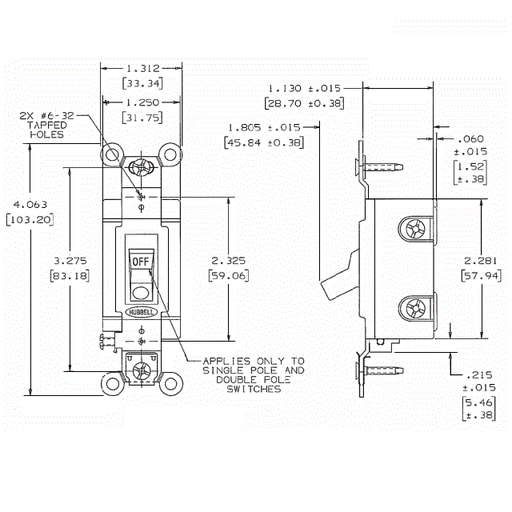

4.06 in x 1.31 in x 1.87 in
Type:
Toggle
Voltage:
120-277 Volt
Widths:
1.31 in
SoneparProductId:
SKU_US_29470597
Toggle, back and side wired Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute; Electrical - Max. Continuous Current - 20A; Electrical - Max. Working Voltage - 277V AC; Electrical - Overload - Minimum 4.8 times rated current for 100 cycles; Electrical - Temperature Rise - 30±C maximum at rated current; Environmental - Flammability - UL 94V-2; Environmental - Operating Temperature - Max. continuous: 75±C, Min. continuous: -40±C without impact; Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only - Overview: Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Office White Toggle; Abuse resistant nylon toggle; Large brass binding head screws with deep slots; Strip gauge for accurate wiring
