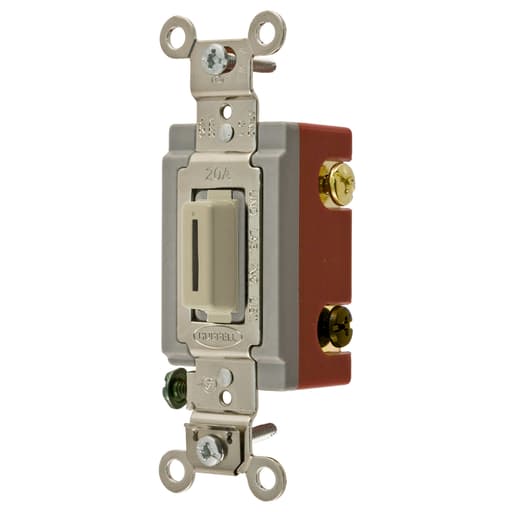

Hubbell Wiring Device - Hubbell HBL1223LI3W TOG, IND GRD, 20A 120/277V, LK, IV
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585188621
Actuator - Double Ended Key
Amperage - 20 Amp
Applications - Back and Side Wired
Catalog Number - HBL1223LI
Packaging
1 ea
EAN
00783585188621
Part #
207220
Catalog #
HBL1223LI
Commercial reference
HBL1223LI
12-Digit UPC:
783585188621
Actuator:
Double Ended Key
Amperage:
20 Amp
Applications:
Back and Side Wired
Catalog Number:
HBL1223LI
Color:
Ivory
Conductor Size:
14-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB HBL1223LI 3W TOG, IND GRD, 20A 120/277V, LK, IV
Enclosure:
None
Family Brand Name:
Hubbell Incorporated
Grade:
Industrial
Heights:
1.13 Inch
Length:
4.06 Inch
Material:
Thermoset,Thermoset
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
1 Pole
Size:
4.06 in x 1.31 in x 1.13 in
Sub Brand:
AC Toggle Switches
Tc Connection:
Terminal Screws
Type:
Locking
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.31 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_29033971
