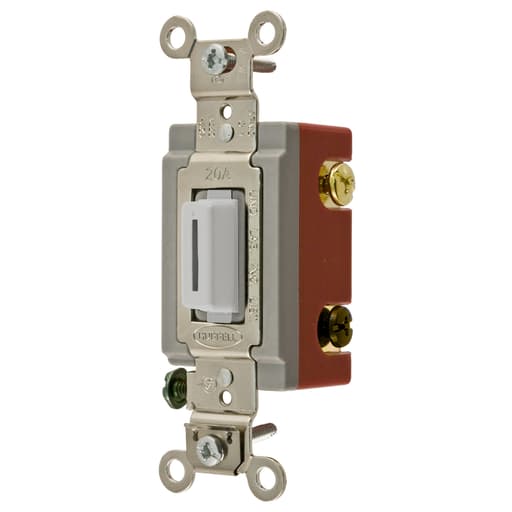

Hubbell Wiring Device - Hubbell HBL1224LW4W TOG, IND GRD, 20A 120/277V, LK, WH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585188676
Actuator - Double Ended Key
Amperage - 20 Amp
Applications - Back and Side Wired
Catalog Number - HBL1224LW
Packaging
1 ea
EAN
00783585188676
Part #
158853
Catalog #
HBL1224LW
Commercial reference
HBL1224LW
12-Digit UPC:
783585188676
Actuator:
Double Ended Key
Amperage:
20 Amp
Applications:
Back and Side Wired
Catalog Number:
HBL1224LW
Color:
White
Conductor Size:
14-10 AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB HBL1224LW 4W TOG, IND GRD, 20A 120/277V, LK, WH
Enclosure:
None
Family Brand Name:
Hubbell Incorporated
Grade:
Industrial
Heights:
1.13 Inch
Length:
4.06 Inch
Material:
Thermoset,Thermoset
Max Current:
20 A
Max Voltage:
277 V
Number of Poles:
2 Pole
Size:
4.06 in x 1.31 in x 1.13 in
Sub Brand:
AC Toggle Switches
Tc Connection:
Terminal Screws
Type:
Non-Reversing
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.31 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_29007950
