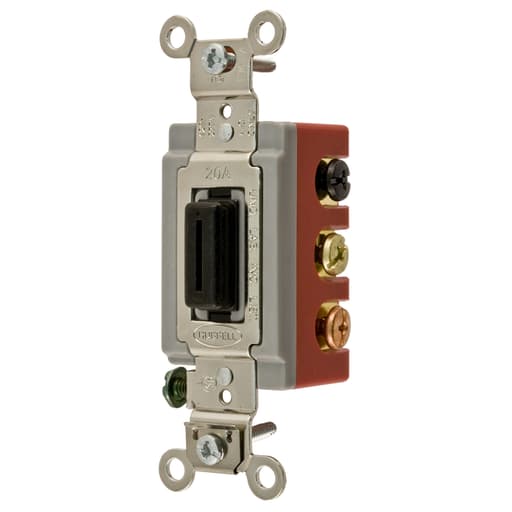

Hubbell Wiring Device - Hubbell HBL1386L 20 Amp 120/277 VAC DPDT Locking Toggle Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585432687
Actuator - Non-Cylindrical Double Ended Key
Amperage - 20 Amp
Applications - Double Pole Double Throw, Three Position Center Off
Catalog Number - HBL1386L
Packaging
1 ea
EAN
00783585432687
Part #
290505
Catalog #
HBL1386L
Commercial reference
HBL1386L
12-Digit UPC:
783585432687
Actuator:
Non-Cylindrical Double Ended Key
Amperage:
20 Amp
Applications:
Double Pole Double Throw, Three Position Center Off
Catalog Number:
HBL1386L
Color:
Black
Conductor Size:
14-10 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL1386L TOG, 20A 120/277V, DPDT CNTR OFF, LOCK
Enclosure:
None
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Industrial
Heights:
1.19 Inch
Length:
4.06 Inch
Material:
Composite
Number of Poles:
2 Pole
Size:
Standard Product Size
Sub Brand:
AC Toggle Switches
Tc Connection:
Terminal Screws
Type:
3-Position, Extra Heavy-Duty, General-Purpose, Inductive, Resistive
Voltage:
120-277 Volt
Wattage:
5540 Watt
Widths:
1.31 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_26588613
