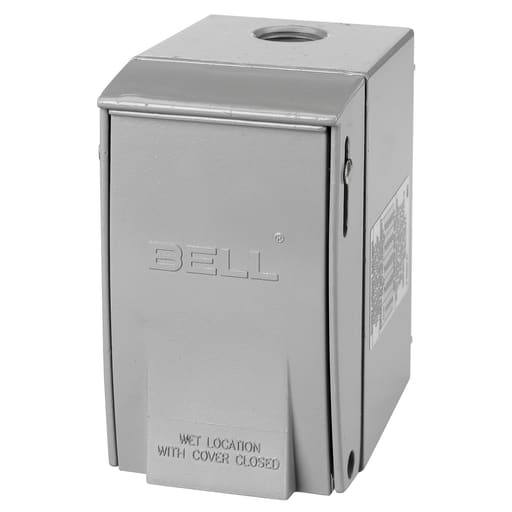

Hubbell Wiring Device - Hubbell HBL13R12D30A 600V 2P FLIP LID 3R BOX w/SW

Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC, Back and Side Wired, Gray, NEMA 3R Enclosure with Flip Lids and Performance: Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute; Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load; Electrical - Max. Working Voltage - 600V AC RMS; Environmental - Flammability - UL94HB/VO; Environmental - Operating Temperature - Max. 75±C,Min. -40±C continuous w/o impact; Mechanical - Mechanical Life - Min. 10,000 minimum cycles; Mechanical - Switch Rating - 25 inch pounds; Mechanical - Terminal Accommodations - #10 AWG Max; Mechanical - Terminal Torque - 20 inch pounds; Mechanical - Wire Type - Solid and stranded copper wire only - Features: Optional Side Guard for close wall applications; Clamping plate for secure back or side wiring; Thermoset body provides resistance to electrical arc tracking - Industry Standard(s): CSA-C22.2 No.14 Industrial Control File LR-46186; UL 508, Industrial Control File #E70402
