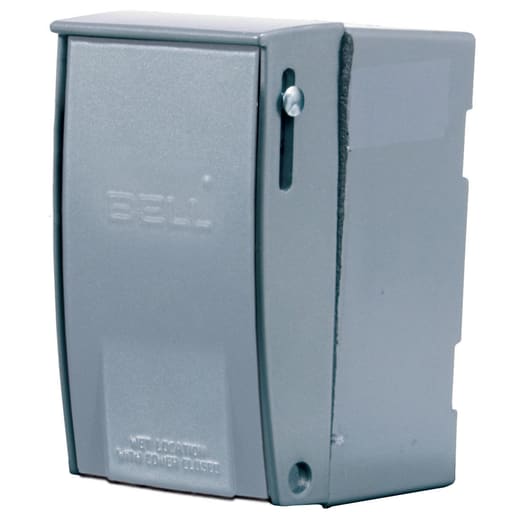

Hubbell Wiring Device - Hubbell HBL13R13D 30 Amp 600 VAC 3-Pole NEMA 3/3R Aluminum Disconnect Switch Enclosure

Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Gray, NEMA 3R Enclosure with Flip Lids and Performance: Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute; Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load; Electrical - Max. Working Voltage - 600V AC RMS; Environmental - Flammability - UL94HB/VO; Environmental - Operating Temperature - Max. 75±C,Min. -40±C continuous w/o impact; Mechanical - Mechanical Life - Min. 10,000 minimum cycles; Mechanical - Switch Rating - 25 inch pounds; Mechanical - Terminal Accommodations - #10 AWG Max; Mechanical - Terminal Torque - 20 inch pounds; Mechanical - Wire Type - Solid and stranded copper wire only - Industry Standard(s): CSA-C22.2 No.14 Industrial Control File LR-46186; UL 508, Industrial Control File #E70402 - Features: Optional Side Guard for close wall applications; Clamping plate for secure back or side wiring; Thermoset body provides resistance to electrical arc tracking
