Hubbell Wiring Device - Hubbell HBL21420 30 Amp 600 Volt 3-Pole 4-Wire Locking Flanged Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585017426

  • Amperage - 30 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - HBL21420

  • Color - Black

Packaging

  • 1 ea

EAN

00783585017426

Part #

215571

Catalog #

HBL21420

Commercial reference

HBL21420

12-Digit UPC:

783585017426

Amperage:

30 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

HBL21420

Color:

Black

Conductor Size:

12-10 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL21420 ANG RCPT 3P4W30A600V

Family Brand Name:

Hubbell Wiring Device-Kellems

Grade:

Industrial

Heights:

5.09 Inch

Length:

5.93 Inch

Material:

Plastic

Mounting Type:

Screw, Surface

Number of Poles:

3 Pole

Number of Wires:

4-Wire Grounding

Size:

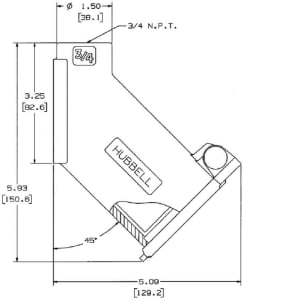

5.93 in x 3.06 in x 5.09 in

Sub Brand:

Hubbell-Lock®

Tc Connection:

Screw Terminal

Type:

Heavy Duty, Multi-Phase

Voltage:

250 Volt

Wattage:

18000 Watt

Widths:

3.06 in

Wire Size:

10-6 AWG

SoneparProductId:

SKU_US_26767972

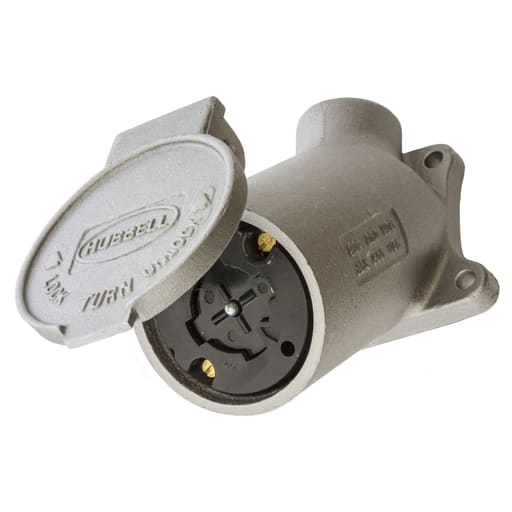

Locking Devices, Hubbellock®, Industrial, Flanged Receptacle, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Cast Aluminum angle housing, with 3/4" N P T hub for surface mounting, Metallic Features: Spring loaded safety shutter contains arcing when mating or un-mating devices under load; Spring loaded safety shutter automatically ejects the plug eliminating contact teasing; Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability; Angled housing reduces the profile of the device and makes mating and un-mating easier; Metallic weather protective spring loaded cover provides protection from moisture and dust; Auto Ejects Improperly Made Connection
