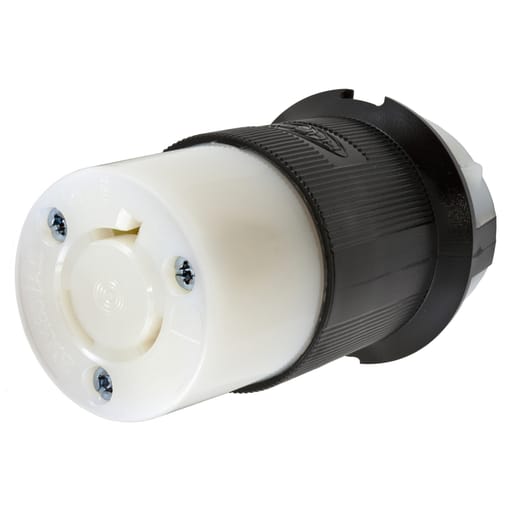

Hubbell Wiring Device - Hubbell HBL2343 20 Amp 480 Volt 2-Pole 3-Wire NEMA L8-20R Black and White Locking Connector Body
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585037981
Amperage - 20 Amp
Applications - Heavy Duty Industrial
Catalog Number - HBL2343
Color - Black and White
Packaging
1 ea
EAN
00783585037981
Part #
215961
Catalog #
HBL2343
Commercial reference
HBL2343
12-Digit UPC:
783585037981
Amperage:
20 Amp
Applications:
Heavy Duty Industrial
Catalog Number:
HBL2343
Color:
Black and White
Conductor Size:
12-10 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2343 GRD LKG CONN-NM L8-20R
Family Brand Name:
Hubbell Wiring Device-Kellems

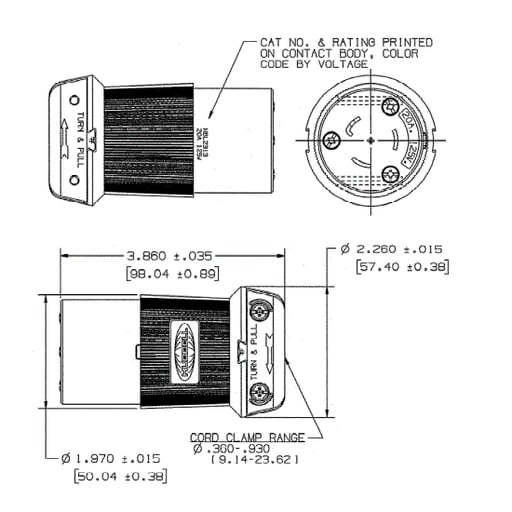

Heights:
3.86 Inch
Length:
2.26 Inch
Material:
Composite

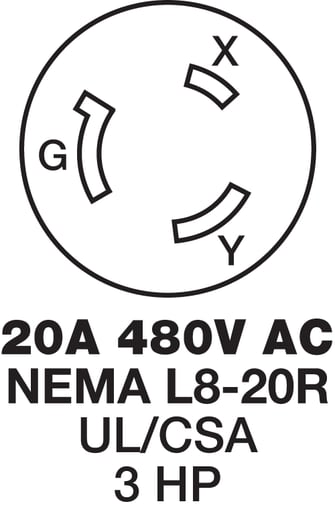

NEMA:
L8-20R
Number of Conductors:
3
Number of Poles:
2-2 Pole
Number of Ports:
2
Number of Wires:
3 Wire
Size:
Standard
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Pressure Screw Terminal
Type:
Female, Standard
Voltage:
480 Volt
Widths:
2.26 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_25439744
