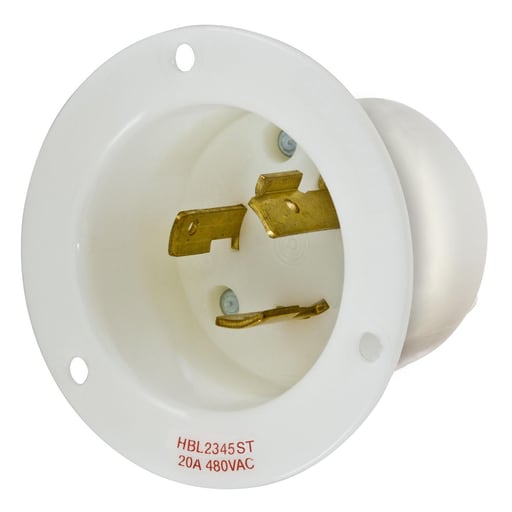

Hubbell Wiring Device - Hubbell HBL2345 20 Amp 480 Volt 2-Pole 3-Wire NEMA L8-20P White Locking Flanged Inlet
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038001
Amperage - 20 Amp
Applications - Extra Heavy Duty Industrial
Catalog Number - HBL2345
Color - White
Packaging
1 ea
EAN
00783585038001
Part #
421225
Catalog #
HBL2345
Commercial reference
HBL2345
12-Digit UPC:
783585038001
Amperage:
20 Amp
Applications:
Extra Heavy Duty Industrial
Catalog Number:
HBL2345
Color:
White
Conductor Size:
16-8 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2345 LKG FLG-INLT, 20A 480V, L8-20P, WH
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.09 Inch
Length:
2.88 Inch
Material:
Nylon
Mounting Type:
Screw
NEMA:
L8-20P
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
2 Wire
Size:
2.88 in x 2.88 in x 2.09 in
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminals
Type:
Non-Reversing
Voltage:
480 Volt
Wattage:
9600 Watt
Widths:
2.88 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26383568
