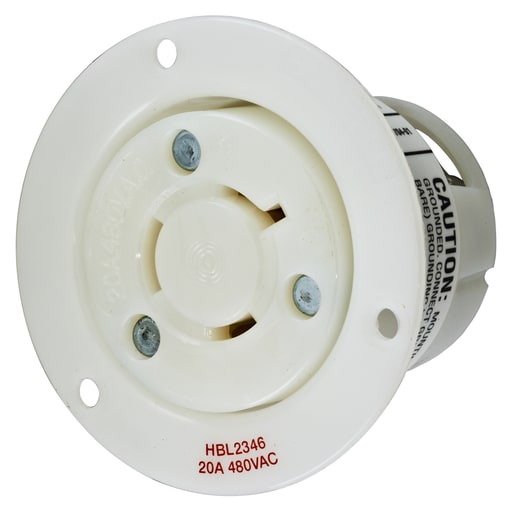

Hubbell Wiring Device - Hubbell HBL2346 20 Amp 480 Volt 2-Pole 3-Wire NEMA L8-20R White Locking Flanged Receptacle

12-Digit UPC:

783585038018

Amperage:

20 Amp

Applications:

Insulgrip

Catalog Number:

HBL2346

Color:

White

Conductor Size:

14-8 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL2346 LKG FLG-RCPT, 20A 480V, L8-20R, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

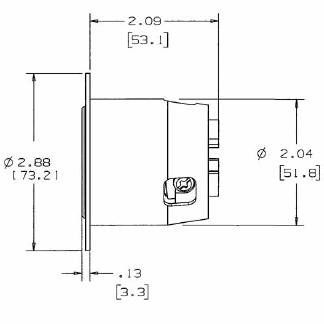

Heights:

2.09 Inch

Horsepower:

5 hp

Length:

2.88 Inch

Material:

Thermoplastic

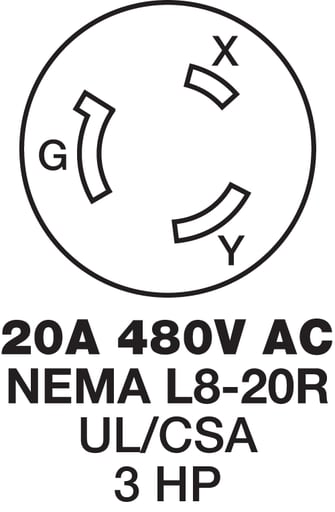

NEMA:

L8-20R

Number of Conductors:

3

Number of Phases:

1 Phase

Number of Poles:

2-2 Pole

Number of Wires:

3,3

Size:

Standard Sized

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminal

Type:

Standard, Single, 2-Pole

Voltage:

480 Volt

Wattage:

9600 Watt

Widths:

2.88 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25756157
