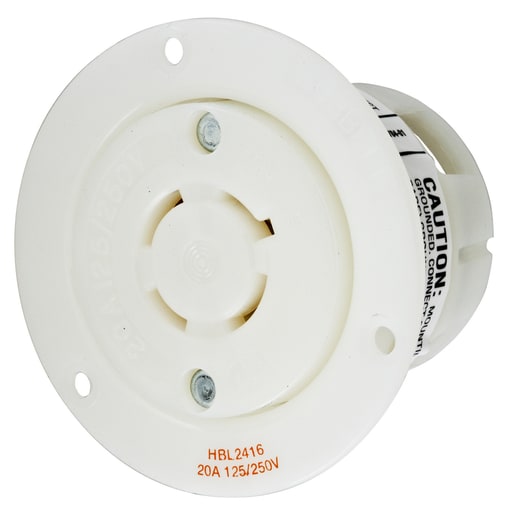

Hubbell Wiring Device - Hubbell HBL2416 20 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-20R White Locking Flanged Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038186
Amperage - 20 Amp
Applications - Insulgrip
Catalog Number - HBL2416
Color - White
Packaging
1 ea
EAN
00783585038186
Part #
150435
Catalog #
HBL2416
Commercial reference
HBL2416
12-Digit UPC:
783585038186
Amperage:
20 Amp
Applications:
Insulgrip
Catalog Number:
HBL2416
Color:
White
Conductor Size:
14-8 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2416 LKG FLG-RCPT, 20A 125/250V, L14-20R, WH
Family Brand Name:
Hubbell Wiring Device-Kellems

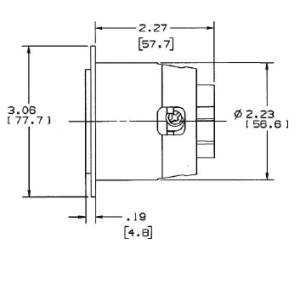

Heights:
2.27 Inch
Horsepower:
2 hp
Length:
3.06 Inch
Material:
Thermoplastic
Mounting Type:
Surface, Screw

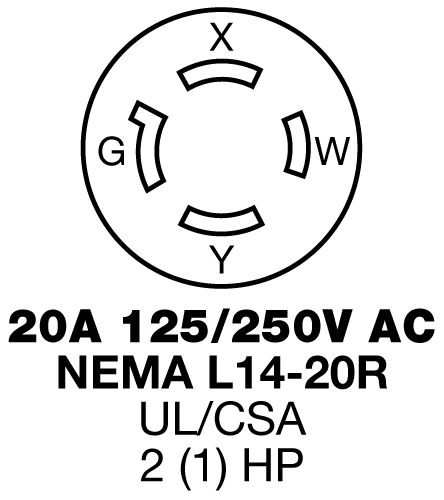

NEMA:
L14-20R
Number of Phases:
1 Phase
Number of Poles:
3 Pole
Number of Wires:
4-Wire Grounding
Size:
Standard Sized
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Single, Standard, Insulgrip
Voltage:
125/250 Volt
Wattage:
5000 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26383552
