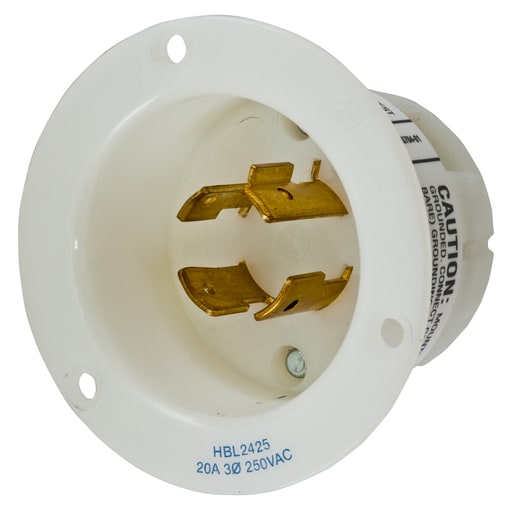

Hubbell Wiring Device - Hubbell HBL2425 20 Amp 250 Volt 3-Pole 4-Wire NEMA L15-20P White Locking Flanged Inlet

12-Digit UPC:

783585038247

Amperage:

20 Amp

Applications:

Extra Heavy Duty Industrial

Catalog Number:

HBL2425

Color:

White

Conductor Size:

12-10 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL2425 LKG FLG-INLT, 20A 3P 250V, L15-20P, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

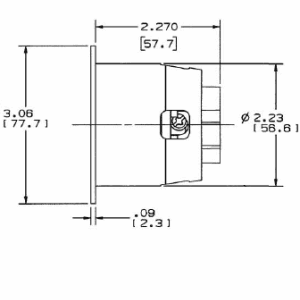

Heights:

2.27 Inch

Horsepower:

3 hp

Length:

3.06 Inch

Material:

Composite

NEMA:

L15-20P

Number of Conductors:

4

Number of Phases:

3 Phase

Number of Poles:

3-3 Pole

Number of Ports:

3

Number of Wires:

4,4

Size:

Standard Sized

Sub Brand:

Twist-Lock®, Insulgrip®

Tc Connection:

Screw Terminals

Type:

Standard, Single

Voltage:

250 Volt

Wattage:

5000 Watt

Widths:

3.06 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_26625171
