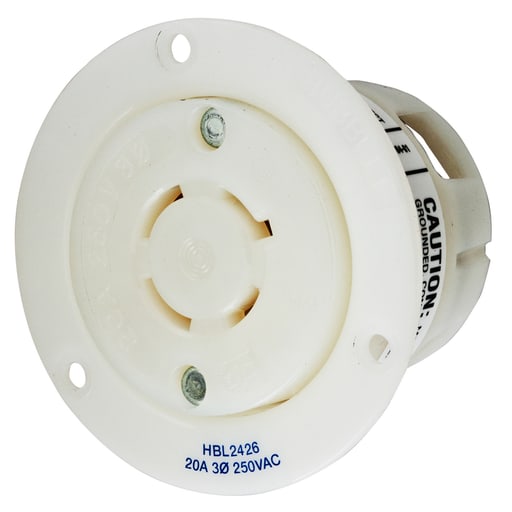

Hubbell Wiring Device - Hubbell HBL2426 20 Amp 250 Volt 3-Pole 4-Wire NEMA L15-20R White Locking Flanged Receptacle

12-Digit UPC:

783585038261

Amperage:

20 Amp

Applications:

Insulgrip

Catalog Number:

HBL2426

Color:

White

Conductor Size:

14-8 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL2426 LKG FLG-RCPT, 20A 3P 250V, L15-20R, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

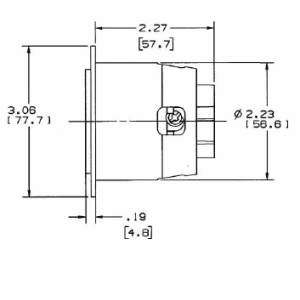

Heights:

2.27 Inch

Horsepower:

3 hp

Length:

3.06 Inch

Material:

Thermoplastic

Mounting Type:

Surface, Screw

NEMA:

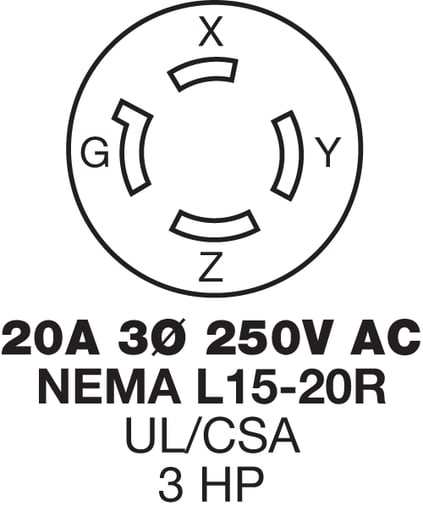

L15-20R

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Number of Wires:

4-Wire Grounding

Size:

Standard Sized

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminal

Type:

Single, Standard, Insulgrip

Voltage:

250 Volt

Wattage:

5000 Watt

Widths:

3.06 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25492420
