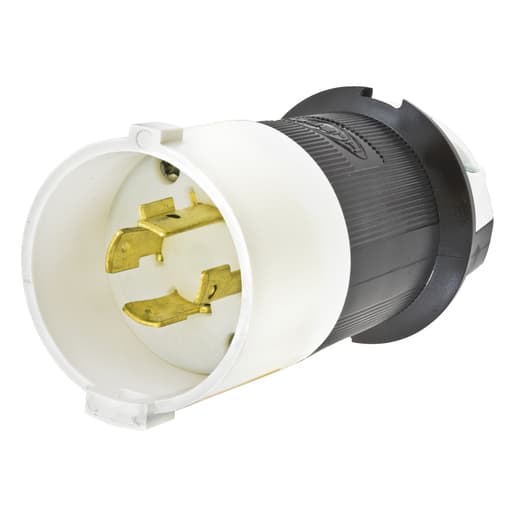

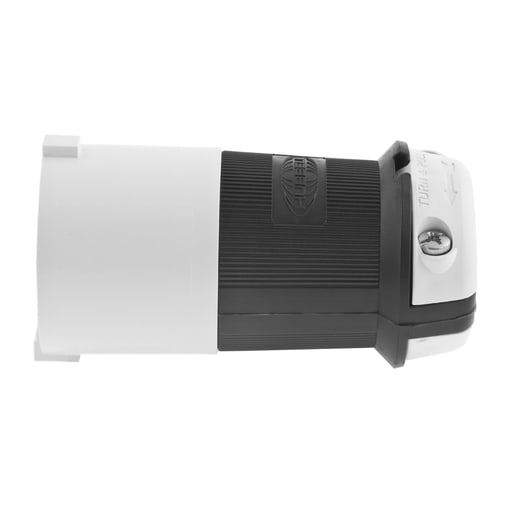

Hubbell Wiring Device - Hubbell HBL2431S 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20P Black and White Locking Plug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585234625
Amperage - 20 Amp
Applications - For Extra Heavy Duty Industrial Applications
Catalog Number - HBL2431S
Color - Black,White
Packaging
1 ea
EAN
00783585234625
Part #
216094
Catalog #
HBL2431S
Commercial reference
HBL2431S
12-Digit UPC:
783585234625
Amperage:
20 Amp
Applications:
For Extra Heavy Duty Industrial Applications
Catalog Number:
HBL2431S
Color:
Black,White
Conductor Size:
16-8 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2431S LKG PLUG-NMA L16-20P
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
4.21 Inch
Horsepower:
5 hp
Length:
2.33 Inch
Material:
Nylon
Mounting Type:
Cord
NEMA:
L16-20P
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire

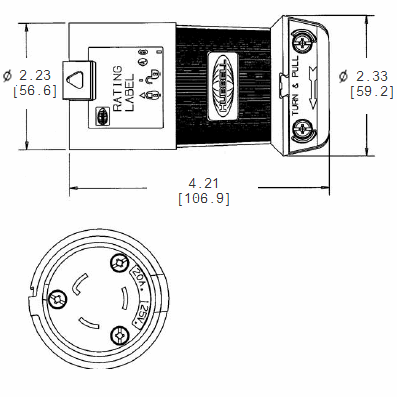

Size:
2.33 in x 2.23 in x 4.21 in
Sub Brand:
Twist-Lock®, Watertight Safety-Shroud®
Tc Connection:
Terminal Screws
Type:
Standard, Shrouded, Watertight
Voltage:
480 Volt
Wattage:
9600 Watt
Widths:
2.23 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_25600012
