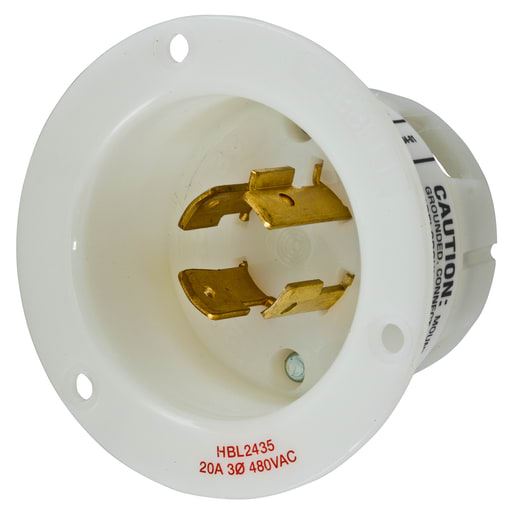

Hubbell Wiring Device - Hubbell HBL2435 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20P White Locking Flanged Inlet

12-Digit UPC:

783585038322

Amperage:

20 Amp

Applications:

Extra Heavy Duty Industrial

Catalog Number:

HBL2435

Color:

White

Conductor Size:

16-8 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL2435 LKG FLG-INLT, 20A 3P 480V, L16-20P, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.27 Inch

Horsepower:

5 hp

Length:

3.06 Inch

Material:

Nylon

Mounting Type:

Screw

NEMA:

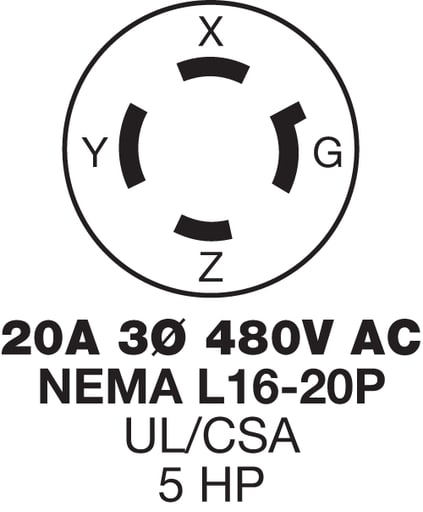

L16-20P

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Number of Wires:

4 Wire

Size:

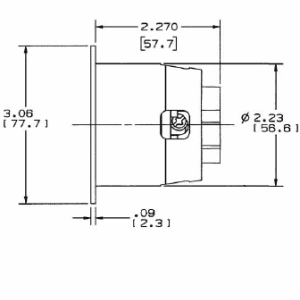

3.06 in x 3.06 in x 2.27 in

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminals

Type:

Non-Reversing

Voltage:

480 Volt

Wattage:

9600 Watt

Widths:

3.06 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25728412
