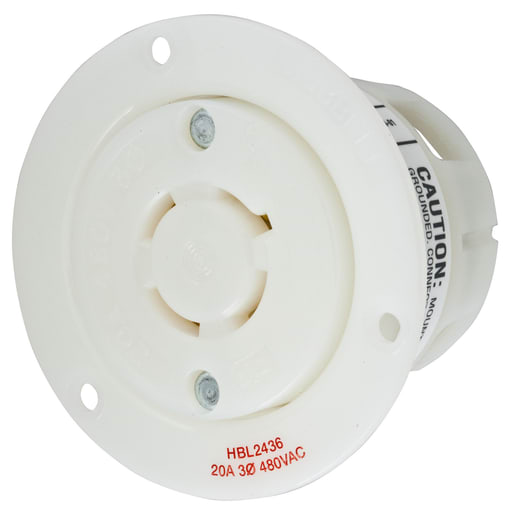

Hubbell Wiring Device - Hubbell HBL2436 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20R White Locking Flanged Receptacle

12-Digit UPC:

783585038346

Amperage:

20 Amp

Applications:

Insulgrip

Catalog Number:

HBL2436

Color:

White

Conductor Size:

14-8 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL2436 LKG FLG-RCPT, 20A 3P 480V, L16-20R, WH

Family Brand Name:

Hubbell Wiring Device-Kellems

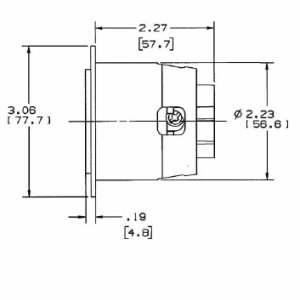

Heights:

2.27 Inch

Horsepower:

5 hp

Length:

3.06 Inch

Material:

Thermoplastic

NEMA:

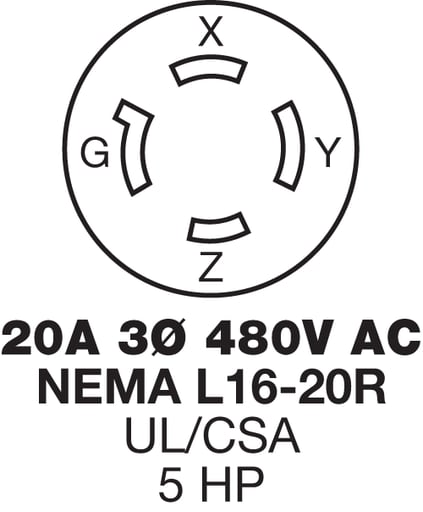

L16-20R

Number of Conductors:

4

Number of Phases:

3 Phase

Number of Poles:

3-3 Pole

Number of Wires:

4,4

Size:

Standard Sized

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminal

Type:

Standard, Single, 3-Pole

Voltage:

480 Volt

Wattage:

9600 Watt

Widths:

3.06 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25743108
