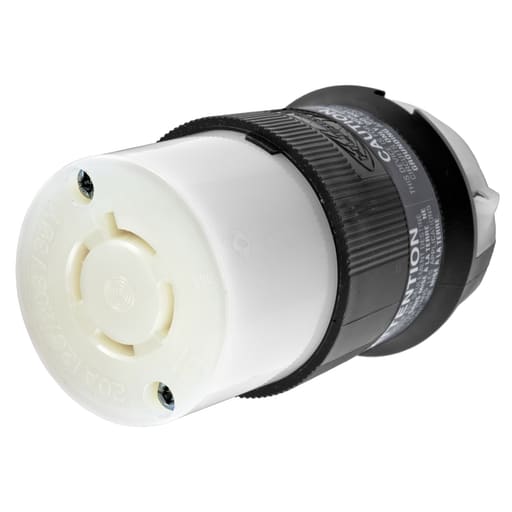

Hubbell Wiring Device - Hubbell HBL2443 20 Amp 120/208 Volt 4-Pole 4-Wire NEMA L18-20R Black and White Locking Connector Body
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038360
Amperage - 20 Amp
Applications - Heavy Duty Industrial
Catalog Number - HBL2443
Color - Black and White
Packaging
1 ea
EAN
00783585038360
Part #
216124
Catalog #
HBL2443
Commercial reference
HBL2443
12-Digit UPC:
783585038360
Amperage:
20 Amp
Applications:
Heavy Duty Industrial
Catalog Number:
HBL2443
Color:
Black and White
Conductor Size:
12-10 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2443 LKG CONN-NEMA L18-20R
Family Brand Name:
Hubbell Wiring Device-Kellems

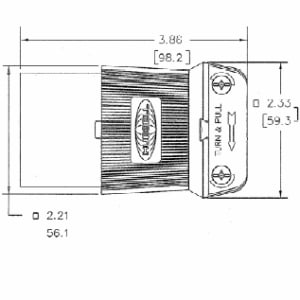

Heights:
3.86 Inch
Length:
2.33 Inch
Material:
Composite

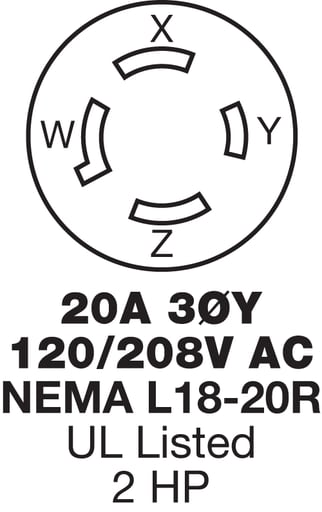

NEMA:
L18-20R
Number of Conductors:
4-Wire Non-Grounding
Number of Phases:
3 Phase
Number of Poles:
4-4 Pole
Number of Wires:
4 Wire
Size:
Standard
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Pressure Screw Terminal
Type:
Insulated, Standard, 4-Pole
Voltage:
120/208 Volt
Widths:
2.33 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26624948
