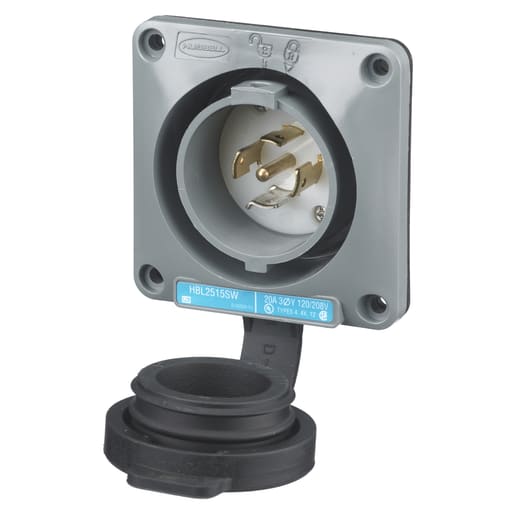

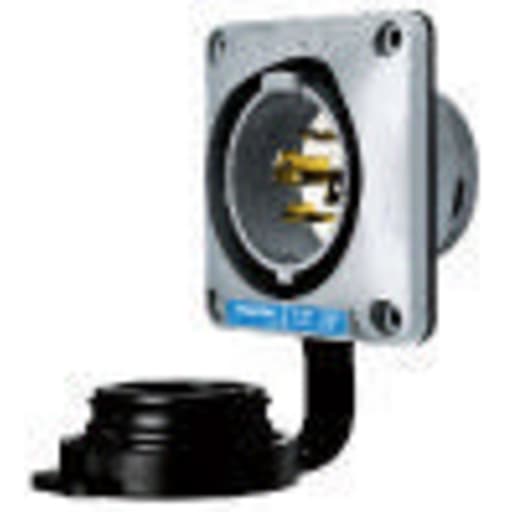

Hubbell Wiring Device - Hubbell HBL2515SW Locking WT S/SHRD INLT, 20A120/208V, L21-20P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585231563
Amperage - 20 Amp
Applications - Extra Heavy Duty Industrial
Catalog Number - HBL2515SW
Color - Gray,White
Packaging
1 ea
EAN
00783585231563
Part #
355195
Catalog #
HBL2515SW
Commercial reference
HBL2515SW
12-Digit UPC:
783585231563
Amperage:
20 Amp
Applications:
Extra Heavy Duty Industrial
Catalog Number:
HBL2515SW
Color:
Gray,White
Conductor Size:
12-10 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2515SW LKG WT S/SHRD INLT,20A120/208V,L21-20P
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.44 Inch
Length:
3-3/4 Inch
Material:
Composite
Mounting Type:
Screw, Surface
NEMA:

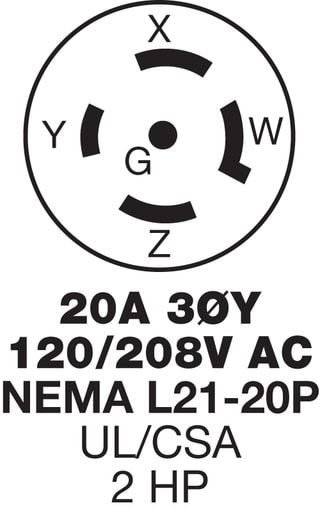

L21-20P
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
5 Wire
Size:
3.75 in x 3.75 in x 2.44 in
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminals
Type:
Shrouded, Single, Locking, Industrial Grade
Voltage:
120/208 Volt
Wattage:
4160 Watt
Widths:
3.200 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_29700082
