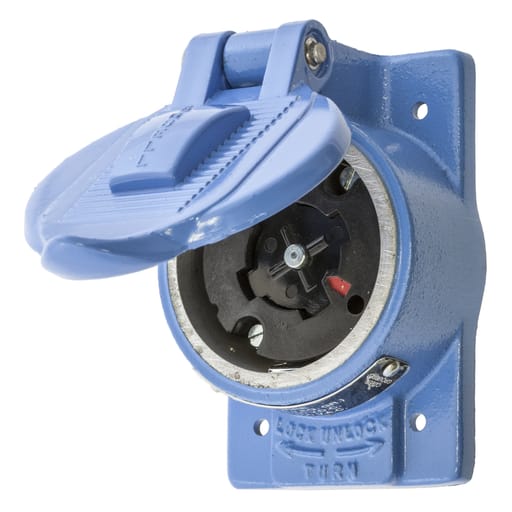

Hubbell Wiring Device - Hubbell HBL25250H/LOCK Receptacle, 4P5W, 30A 600V, FS/FD COVER

CopyCopy
Hubbell Wiring Device - Hubbell HBL25250H/LOCK Receptacle, 4P5W, 30A 600V, FS/FD COVER

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585017594

  • Amperage - 30 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - HBL25250

  • Color - Blue

Packaging

  • 1 ea

EAN

00783585017594

Part #

155236

Catalog #

HBL25250

Commercial reference

HBL25250

12-Digit UPC:

783585017594

Amperage:

30 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

HBL25250

Color:

Blue

Conductor Size:

12-10 AWG

Country of Origin:

USA

Current:

20 Amp

ERP_productname:

HUB HBL25250 H/LOCK RCPT, 4P5W, 30A 600V, FS/FD COVER

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

3.67 Inch

Length:

4.56 Inch

Material:

Thermoplastic

Mounting Type:

Screw, Surface

Number of Poles:

4 Pole

Number of Wires:

5 Wire

Size:

Standard

Sub Brand:

Hubbell-Lock®

Tc Connection:

Screw Terminal

Type:

Single

Voltage:

250 Volt

Wattage:

18000 Watt

Widths:

3.28 in

Wire Size:

10-6 AWG

SoneparProductId:

SKU_US_29261769

Locking Devices, Hubbellock®, Industrial, Receptacle, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding, Black phenolic interior, Aluminum weatherproof housing, Non NEMA, Screw Terminal, Blue, With FS/FD Cover. Features: Spring loaded safety shutter contains arcing when mating or un-mating devices under load; Spring loaded safety shutter automatically ejects the plug eliminating contact teasing; Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability; Metallic weather protective spring loaded cover provides protection from moisture and dust; Auto Ejects Improperly Made Connection
