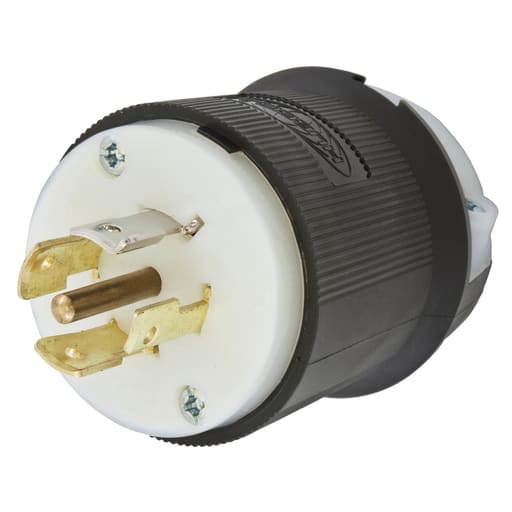

Hubbell Wiring Device - Hubbell HBL2531 20A 3PhY 347/600V AC Twist-Lock INSULGRIP Black Nylon Plug, Straight
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038650
Amperage - 20 Amp
Applications - For Extra Heavy Duty Industrial Applications
Catalog Number - HBL2531
Color - Black,White
Packaging
1 ea
EAN
00783585038650
Part #
176581
Catalog #
HBL2531
Commercial reference
HBL2531
12-Digit UPC:
783585038650
Amperage:
20 Amp
Applications:
For Extra Heavy Duty Industrial Applications
Catalog Number:
HBL2531
Color:
Black,White
Conductor Size:
16-8 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2531 LKG PLUG, 20A 347/600V, L23-20P, B/W
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2-3/4 Inch
Length:
2.33 Inch
Material:
Nylon
Mounting Type:
Surface, Cord

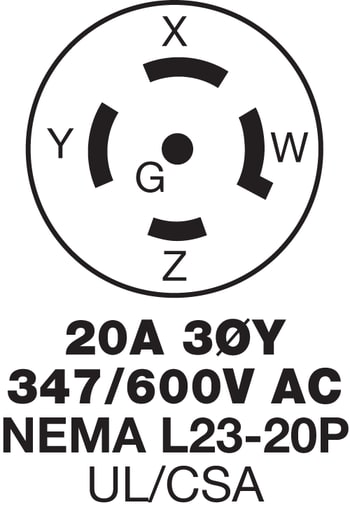

NEMA:
L23-20P
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
5 Wire

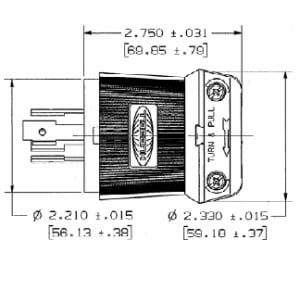

Size:
2.33 in x 2.33 in x 2.75 in
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Terminal Screws
Type:
Standard, Non-Shrouded
Voltage:
347/600 Volt
Wattage:
12000 Watt
Widths:
2.33 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26299046
