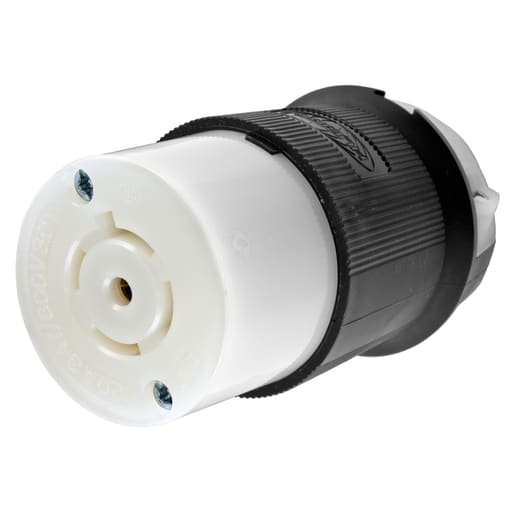

Hubbell Wiring Device - Hubbell HBL2533 20A 3PhY 347/600V AC Twist-Lock INSULGRIP Black Nylon Connector Body
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038674
Amperage - 20 Amp
Applications - Heavy Duty Industrial
Catalog Number - HBL2533
Color - Black and White
Packaging
1 ea
EAN
00783585038674
Part #
234334
Catalog #
HBL2533
Commercial reference
HBL2533
12-Digit UPC:
783585038674
Amperage:
20 Amp
Applications:
Heavy Duty Industrial
Catalog Number:
HBL2533
Color:
Black and White
Conductor Size:
12-10 AWG
Country of Origin:
USA
Current:
20 Amp
ERP_productname:
HUB HBL2533 LKG CONN, 20A 347/600V, L23-20R, B/W
Family Brand Name:
Hubbell Wiring Device-Kellems

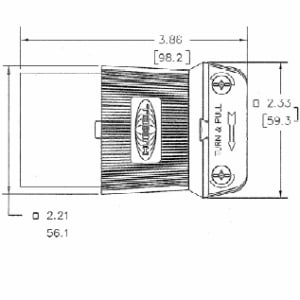

Heights:
3.86 Inch
Length:
2.33 Inch
Material:
Composite

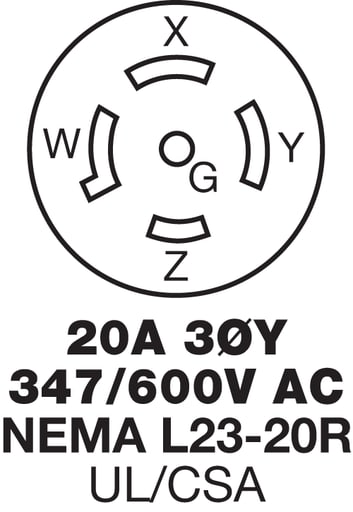

NEMA:
L23-20R
Number of Conductors:
5
Number of Phases:
3 Phase
Number of Poles:
4-4 Pole
Number of Ports:
4
Number of Wires:
4 Wire
Size:
Standard
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Pressure Screw Terminal
Type:
Female, Standard
Voltage:
347/600 Volt
Widths:
2.33 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_29438635
