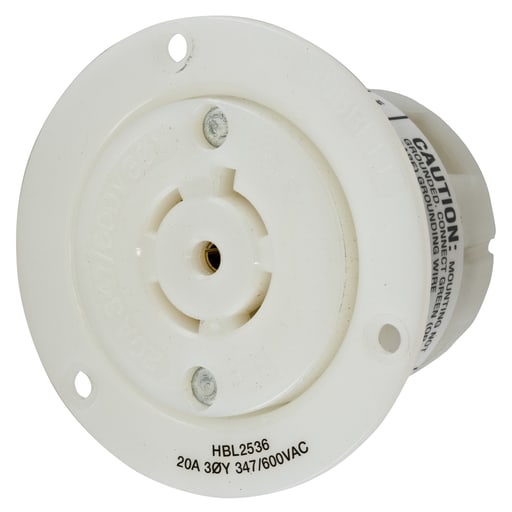

Hubbell Wiring Device - Hubbell HBL2536 Locking Flanged-Receptacle, 20A 347/600V, L23-20R, WH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038704
Amperage - 20 Amp
Applications - Insulgrip
Catalog Number - HBL2536
Color - White
Packaging
1 ea
EAN
00783585038704
Part #
132810
Catalog #
HBL2536
Commercial reference
HBL2536
12-Digit UPC:
783585038704
Amperage:
20 Amp
Applications:
Insulgrip
Catalog Number:
HBL2536
Color:
White
Conductor Size:
14-8 AWG
Country of Origin:
Puerto Rico
Current:
20 Amp
ERP_productname:
HUB HBL2536 LKG FLG-RCPT, 20A 347/600V, L23-20R, WH
Family Brand Name:
Hubbell Wiring Device-Kellems

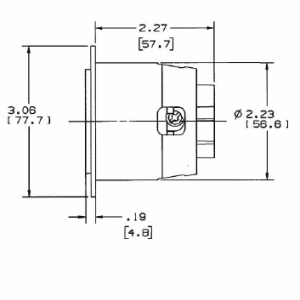

Heights:
2.27 Inch
Length:
3.06 Inch
Material:
Nylon
Mounting Type:
Screw, Recessed/Flush

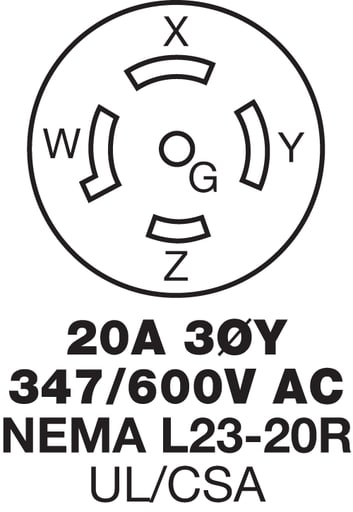

NEMA:
L23-20R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
5 Wire
Size:
Standard Sized
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Single
Voltage:
347/600 Volt
Wattage:
12000 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_30363311
