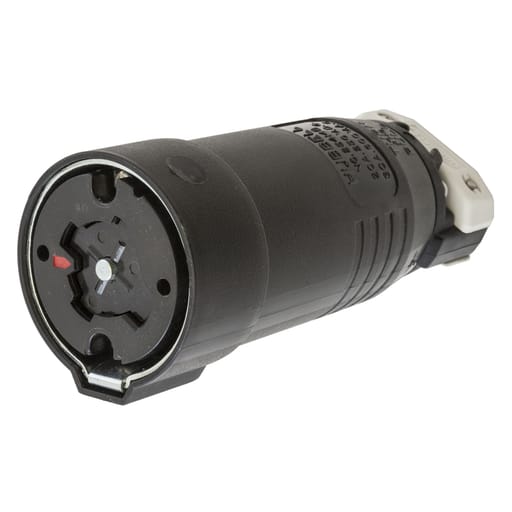

Hubbell Wiring Device - Hubbell HBL25414B 30 Amp 600 Volt 4-Pole 5-Wire Black and White Locking Connector Body

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585017471

  • Amperage - 30 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - HBL25414B

  • Color - Black

Packaging

  • 1 ea

EAN

00783585017471

Part #

306608

Catalog #

HBL25414B

Commercial reference

HBL25414B

12-Digit UPC:

783585017471

Amperage:

30 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

HBL25414B

Color:

Black

Conductor Size:

12-8 AWG

Country of Origin:

Puerto Rico

Current:

20 Amp

ERP_productname:

HUB HBL25414B H/LOCK CONN, 4P5W, 30A 600V

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.69 Inch

Length:

6.78 Inch

Material:

Composite

Number of Conductors:

5

Number of Poles:

4-4 Pole

Number of Wires:

5 Wire

Size:

Standard

Sub Brand:

Hubbell-Lock®

Tc Connection:

Pressure Screw Terminal

Type:

Standard, Insulated, Straight, 4-Pole

Voltage:

250 Volt

Widths:

2.69 in

Wire Size:

10-6 AWG

SoneparProductId:

SKU_US_25606973

Locking Devices, Hubbellock®, Industrial, Female Connector Body, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding, Black nylon housing, Thermoplastic interior, Non NEMA, Screw Terminal, Black/White. Features: Spring loaded safety shutter contains arcing when mating or un-mating devices under load; Spring loaded safety shutter automatically ejects the plug eliminating contact teasing; Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit; Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust; Standard Product
