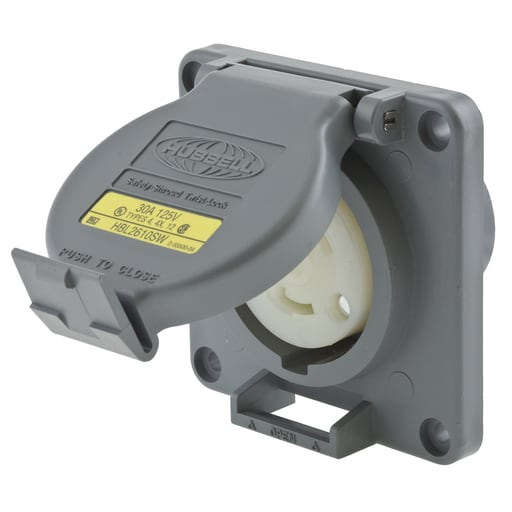

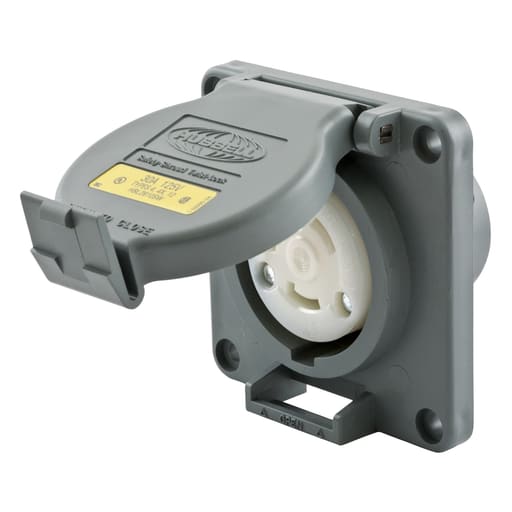

Hubbell Wiring Device - Hubbell HBL2610SW 30A 125V 2Pole, 3 Wire Grounding, Locking Watertite Single Receptacle, NEMA L5-30R - Gray
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585231587
Amperage - 30 Amp
Applications - Heavy Duty Industrial Shrouded Watertight
Catalog Number - HBL2610SW
Color - Gray and White
Packaging
1 ea
EAN
00783585231587
Part #
315673
Catalog #
HBL2610SW
Commercial reference
HBL2610SW
12-Digit UPC:
783585231587
Amperage:
30 Amp
Applications:
Heavy Duty Industrial Shrouded Watertight
Catalog Number:
HBL2610SW
Color:
Gray and White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2610SW LKG WT S/SHRD RCPT, 30A 125V, L5-30R,GY
Family Brand Name:
Hubbell Wiring Device-Kellems
Grade:
Industrial
Heights:
2.69 Inch
Horsepower:
2 hp
Length:
3-3/4 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Surface
NEMA:
L5-30R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire Grounding
Size:
Standard
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Heavy Duty, Shrouded
Voltage:
125 Volt
Wattage:
3750 Watt
Widths:
3.100 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26463529
