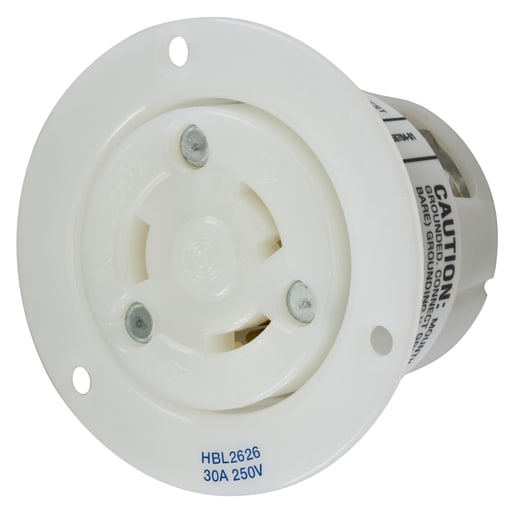

Hubbell Wiring Device - Hubbell HBL2626 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30R White Locking Flanged Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585038933
Amperage - 30 Amp
Applications - Insulgrip
Catalog Number - HBL2626
Color - White
Packaging
1 ea
EAN
00783585038933
Part #
216310
Catalog #
HBL2626
Commercial reference
HBL2626
12-Digit UPC:
783585038933
Amperage:
30 Amp
Applications:
Insulgrip
Catalog Number:
HBL2626
Color:
White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2626 FLGD OUTLET-NMA L6-30R
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.09 Inch
Horsepower:
2 hp
Length:
2.88 Inch
Material:
Thermoplastic
Mounting Type:
Recessed/Flush, Screw
NEMA:
L6-30R
Number of Phases:
1 Phase
Number of Poles:
2 Pole
Number of Wires:
3 Wire Grounding
Size:
Standard Sized
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Single, Standard, Insulgrip
Voltage:
250 Volt
Wattage:
7500 Watt
Widths:
2.88 in
Wire Size:
16-8 AWG
