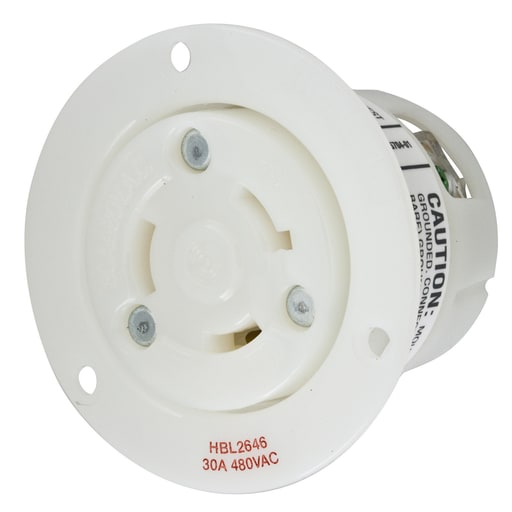

Hubbell Wiring Device - Hubbell HBL2646 30 Amp 480 Volt 2-Pole 3-Wire NEMA L8-30R White Locking Flanged Receptacle

12-Digit UPC:

783585039039

Amperage:

30 Amp

Applications:

Insulgrip

Catalog Number:

HBL2646

Color:

White

Conductor Size:

12-8 AWG

Country of Origin:

USA

Current:

30 Amp

ERP_productname:

HUB HBL2646 LKG FLG-RCPT 30A 480V L8-30R WH

Family Brand Name:

Hubbell Wiring Device-Kellems

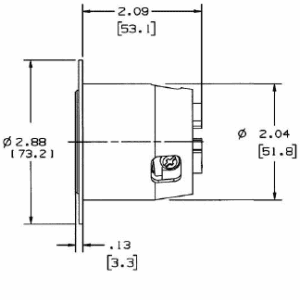

Heights:

2.09 Inch

Horsepower:

5 hp

Length:

2.88 Inch

Material:

Thermoplastic

Mounting Type:

Screw

NEMA:

L8-30R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

Standard Sized

Sub Brand:

Twist-Lock®, Insulgrip®

Tc Connection:

Screw Terminal

Type:

Single, Standard Size

Voltage:

480 Volt

Wattage:

14400 Watt

Widths:

2.88 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25700960
