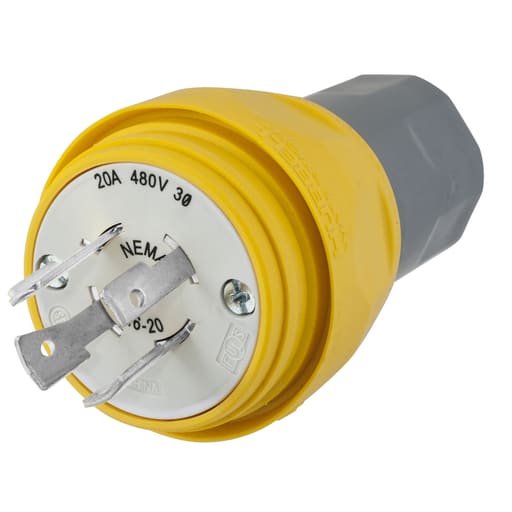

Hubbell Wiring Device - Hubbell HBL26W76 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20P Locking Plug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585131641
Amperage - 20 Amp
Applications - For Industrial/Commercial
Catalog Number - HBL26W76
Color - Yellow
Packaging
1 ea
EAN
00783585131641
Part #
214034
Catalog #
HBL26W76
Commercial reference
HBL26W76
12-Digit UPC:
783585131641
Amperage:
20 Amp
Applications:
For Industrial/Commercial
Catalog Number:
HBL26W76
Color:
Yellow
Conductor Size:
16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S Min, 10/3 S, 10/4 S, 10/5 S, 14-12 Max AWG
Country of Origin:
China
Current:
20 Amp
ERP_productname:
HUB HBL26W76 PLUG, W/TIGHT, 3P 20A 480V, L16-20P, YL
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
3.96 Inch
Length:
2.51 Inch
Material:
Thermoplastic
Mounting Type:
Cord
NEMA:
L16-20P
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire

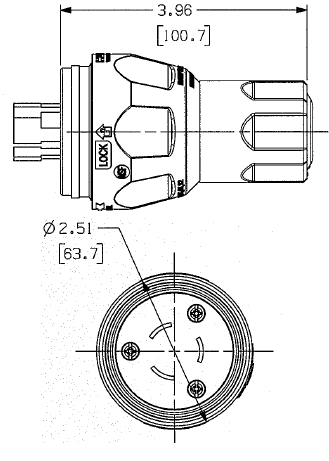

Size:
2.51 in x 2.51 in x 3.96 in
Sub Brand:
Twist-Lock®, Watertight®
Tc Connection:
Screw Terminals
Type:
Standard, Non-Shrouded, Watertight
Voltage:
480 Volt
Widths:
2.51 in
Wire Size:
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
SoneparProductId:
SKU_US_25595563
