Hubbell Wiring Device - Hubbell HBL2735SW 30 Amp 480 Volt 3-Pole 4-Wire NEMA L5-30P Gray Watertight Locking Flanged Inlet

12-Digit UPC:

783585231969

Amperage:

30 Amp

Applications:

Extra Heavy Duty Industrial

Catalog Number:

HBL2735SW

Color:

Gray and White

Conductor Size:

12-8 AWG

Country of Origin:

USA

Current:

30 Amp

ERP_productname:

HUB HBL2735SW LKG WT S/SHRD FL-INLT, 30A3P 480V,L16-30

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.44 Inch

Length:

3-3/4 Inch

Material:

Composite

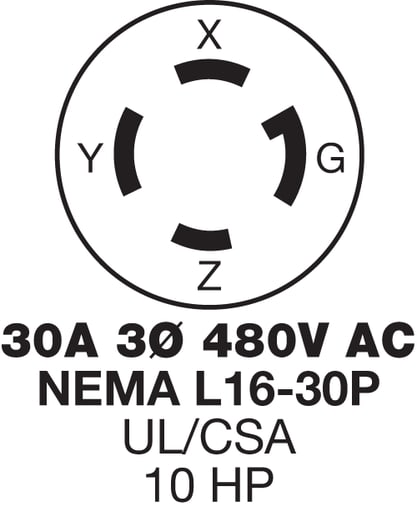

NEMA:

L16-30P

Number of Conductors:

4

Number of Phases:

3 Phase

Number of Poles:

3-3 Pole

Number of Wires:

4,4

Size:

Standard Sized

Sub Brand:

Twist-Lock®, Watertight Safety-Shroud®

Tc Connection:

Screw Terminals

Type:

Standard, Single, Locking, 3-Pole

Voltage:

480 Volt

Wattage:

14400 Watt

Widths:

3.75 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25640835
