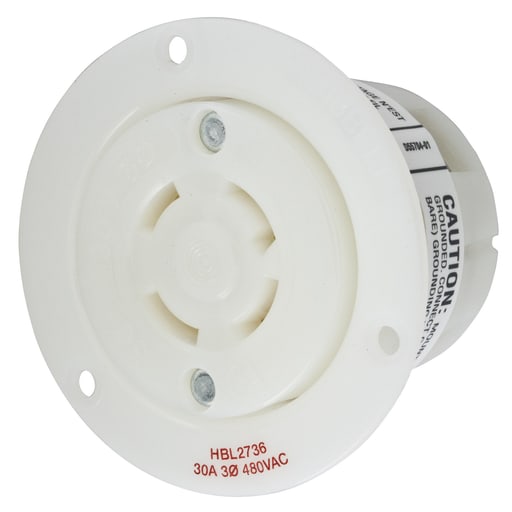

Hubbell Wiring Device - Hubbell HBL2736 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30R White Locking Flanged Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585039367
Amperage - 30 Amp
Applications - Insulgrip
Catalog Number - HBL2736
Color - White
Packaging
1 ea
EAN
00783585039367
Part #
216817
Catalog #
HBL2736
Commercial reference
HBL2736
12-Digit UPC:
783585039367
Amperage:
30 Amp
Applications:
Insulgrip
Catalog Number:
HBL2736
Color:
White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2736 FLGD OUTLT-NM L16-30R
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.27 Inch
Horsepower:
10 hp
Length:
3.06 Inch
Material:
Thermoplastic
NEMA:
L16-30R
Number of Conductors:
4
Number of Phases:
3 Phase
Number of Poles:
3-3 Pole
Number of Wires:
4,4
Size:
Standard Sized
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Standard, Single, 3-Pole
Voltage:
480 Volt
Wattage:
14400 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
