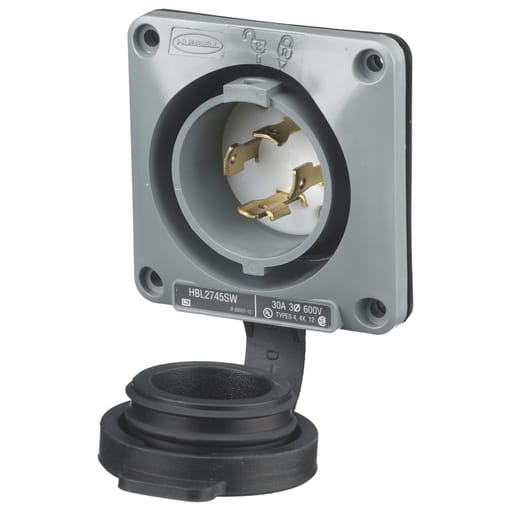

Hubbell Wiring Device - Hubbell HBL2745-SW 30A 3Ph 600V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Flanged Inlet

12-Digit UPC:

783585232041

Amperage:

30 Amp

Applications:

Extra Heavy Duty Industrial

Catalog Number:

HBL2745SW

Color:

Gray and White

Conductor Size:

12-8 AWG

Country of Origin:

USA

Current:

30 Amp

ERP_productname:

HUB HBL2745SW LKG WT S/SHRD FL-INLT, 30A3P 600V,L5-30P

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.44 Inch

Length:

3-3/4 Inch

Material:

Composite

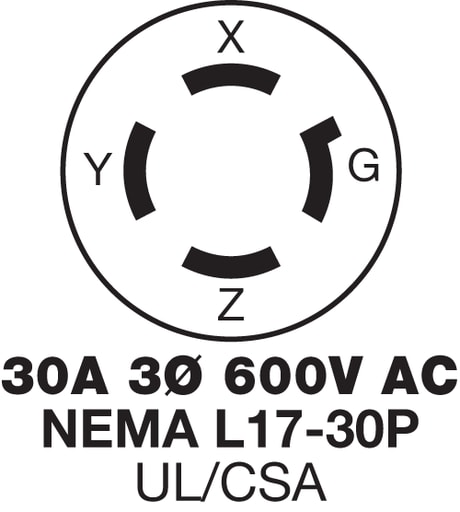

NEMA:

L17-30P

Number of Conductors:

4

Number of Phases:

3 Phase

Number of Poles:

3-3 Pole

Number of Ports:

3

Number of Wires:

4,4

Size:

Standard Sized

Sub Brand:

Twist-Lock®, Safety-Shroud®

Tc Connection:

Screw Terminals

Type:

Standard, Single, Watertight

Voltage:

600 Volt

Wattage:

18000 Watt

Widths:

3.200 in

Wire Size:

16-8 AWG
