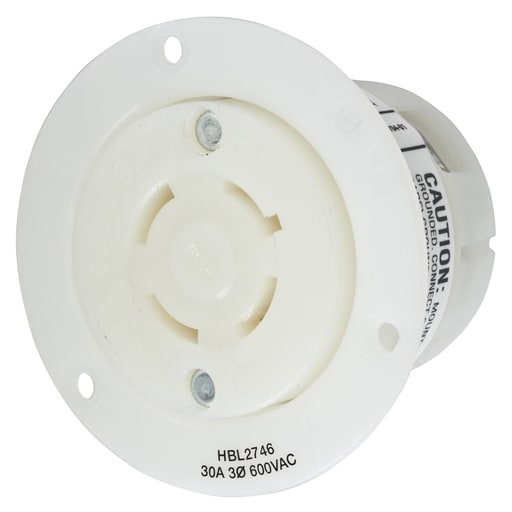

Hubbell Wiring Device - Hubbell HBL2746 30 Amp 600 Volt 3-Pole 4-Wire NEMA L17-30R White Locking Flanged Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585039428
Amperage - 30 Amp
Applications - Insulgrip
Catalog Number - HBL2746
Color - White
Packaging
1 ea
EAN
00783585039428
Part #
193452
Catalog #
HBL2746
Commercial reference
HBL2746
12-Digit UPC:
783585039428
Amperage:
30 Amp
Applications:
Insulgrip
Catalog Number:
HBL2746
Color:
White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2746 LKG FLG-RCPT, 30A 3P 600V, L17-30R, WH
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.27 Inch
Length:
3.06 Inch
Material:
Thermoplastic
Mounting Type:
Recessed/Flush, Screw
NEMA:
L17-30R
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4-Wire Grounding
Size:
Standard Sized
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Single, Standard, Insulgrip
Voltage:
600 Volt
Wattage:
18000 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26067444
