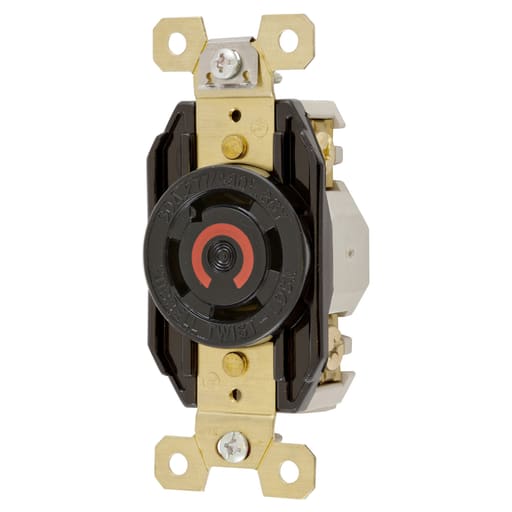

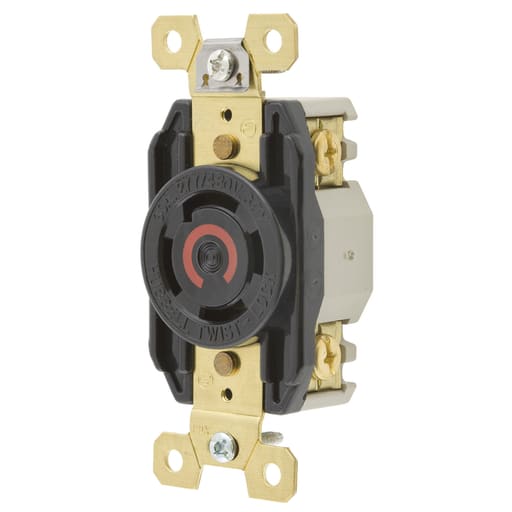

Hubbell Wiring Device - Hubbell HBL2760 30 Amp 277/480 VAC 4-Pole 4-Wire NEMA L19-30R Black Single Flush Locking Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585236216
Amperage - 30 Amp
Applications - Heavy Duty Industrial
Catalog Number - HBL2760
Color - Black
Packaging
1 ea
EAN
00783585236216
Part #
308021
Catalog #
HBL2760
Commercial reference
HBL2760
12-Digit UPC:
783585236216
Amperage:
30 Amp
Applications:
Heavy Duty Industrial
Catalog Number:
HBL2760
Color:
Black
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2760 LKG RCPT, 30A 3PH 277/480V, L19-30R, BK
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
1.31 Inch
Horsepower:
5 hp
Length:
3.28 Inch
Material:
Thermoplastic
Mounting Type:
Screw, Recessed/Flush
NEMA:
L19-30R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
4 Wire
Size:
Standard
Sub Brand:
Twist-Lock®
Tc Connection:
Screw Terminal
Type:
Standard
Voltage:
277/480 Volt
Wattage:
14400 Watt
Widths:
1.7 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_26624296
