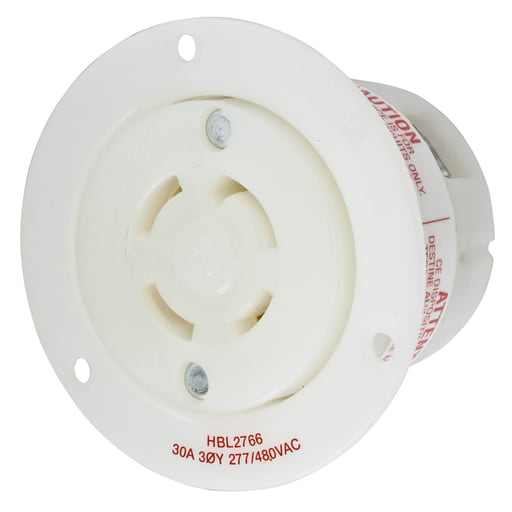

Hubbell Wiring Device - Hubbell HBL2766 Locking Flanged-Receptacle, 30A 3PH 277/480V, L19-30R
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585039503
Amperage - 30 Amp
Applications - Insulgrip
Catalog Number - HBL2766
Color - White
Packaging
1 ea
EAN
00783585039503
Part #
461347
Catalog #
HBL2766
Commercial reference
HBL2766
12-Digit UPC:
783585039503
Amperage:
30 Amp
Applications:
Insulgrip
Catalog Number:
HBL2766
Color:
White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2766 LKG FLG-RCPT, 30A 3PH 277/480V, L19-30R
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
2.27 Inch
Horsepower:
5 hp
Length:
3.06 Inch
Material:
Thermoplastic
Mounting Type:
Flush/Recessed/Screw
NEMA:
L19-30R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
4 Wire
Size:
Standard
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Screw Terminal
Type:
Flanged Single
Voltage:
277/480 Volt
Wattage:
14400 Watt
Widths:
3.06 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_30942911
