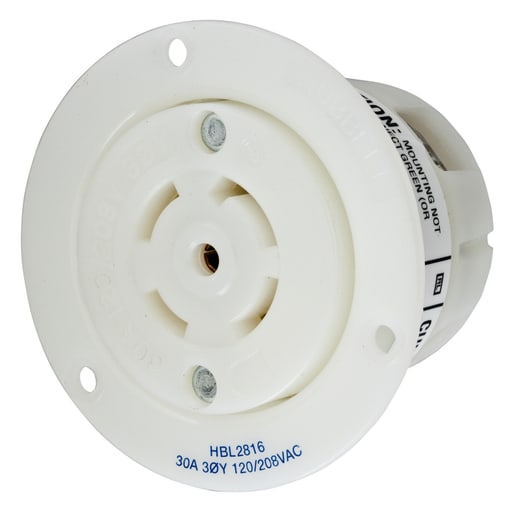

Hubbell Wiring Device - Hubbell HBL2816 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30R White Locking Flanged Receptacle

CopyCopy
Hubbell Wiring Device - Hubbell HBL2816 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30R White Locking Flanged Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783585039688

  • Amperage - 30 Amp

  • Applications - Insulgrip

  • Catalog Number - HBL2816

  • Color - White

Packaging

  • 1 ea

EAN

00783585039688

Part #

142911

Catalog #

HBL2816

Commercial reference

HBL2816

12-Digit UPC:

783585039688

Amperage:

30 Amp

Applications:

Insulgrip

Catalog Number:

HBL2816

Color:

White

Conductor Size:

12-8 AWG

Country of Origin:

USA

Current:

30 Amp

ERP_productname:

HUB HBL2816 LKG FLG-RCPT,30A 3P120/208V,L21-30R,WH

Family Brand Name:

Hubbell Wiring Device-Kellems

Heights:

2.46 Inch

Horsepower:

3 hp

Length:

3.06 Inch

Material:

Thermoplastic

NEMA:

L21-30R

Number of Conductors:

5

Number of Phases:

3 Phase

Number of Poles:

4-4 Pole

Number of Ports:

4

Number of Wires:

5,5

Size:

Standard Sized

Sub Brand:

Twist-Lock®

Tc Connection:

Screw Terminal

Type:

Standard

Voltage:

120/208 Volt

Wattage:

6240 Watt

Widths:

3.06 in

Wire Size:

16-8 AWG

SoneparProductId:

SKU_US_25479258

Locking Devices, Twist-Lock®, Insulgrip® Flanged Receptacle, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, Nylon casing, back wired, White Features: Impact resistant thermoplastic construction; Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson); Mounting screws included; Standard
