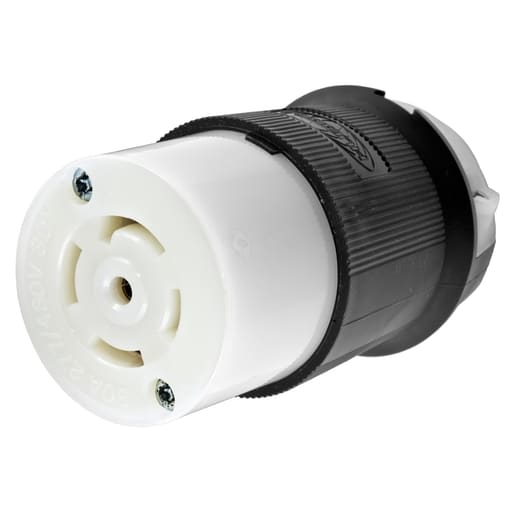

Hubbell Wiring Device - Hubbell HBL2823 30 Amp 277/480 VAC 4-Pole 5-Wire NEMA L22-30R Black and White Locking Connector Body
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585039701
Amperage - 30 Amp
Applications - Heavy Duty Industrial
Catalog Number - HBL2823
Color - Black and White
Packaging
1 ea
EAN
00783585039701
Part #
216986
Catalog #
HBL2823
Commercial reference
HBL2823
12-Digit UPC:
783585039701
Amperage:
30 Amp
Applications:
Heavy Duty Industrial
Catalog Number:
HBL2823
Color:
Black and White
Conductor Size:
12-8 AWG
Country of Origin:
USA
Current:
30 Amp
ERP_productname:
HUB HBL2823 GRD LKG CONN-N L22-30R
Family Brand Name:
Hubbell Wiring Device-Kellems

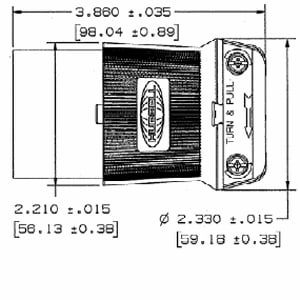

Heights:
3.86 Inch
Length:
2.33 Inch
Material:
Composite

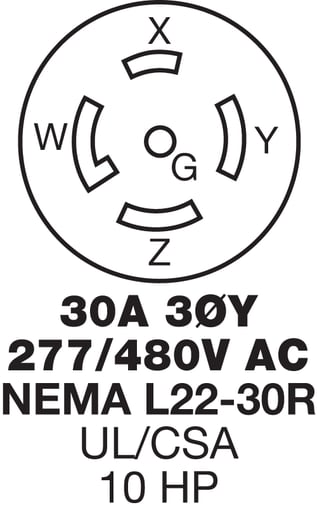

NEMA:
L22-30R
Number of Conductors:
5-Wire Grounding
Number of Phases:
3 Phase
Number of Poles:
4-4 Pole
Number of Wires:
5 Wire
Size:
Standard
Sub Brand:
Twist-Lock®, Insulgrip®
Tc Connection:
Pressure Screw Terminal
Type:
Insulated, Standard, 4-Pole
Voltage:
277/480 Volt
Widths:
2.33 in
Wire Size:
16-8 AWG
SoneparProductId:
SKU_US_25674049
