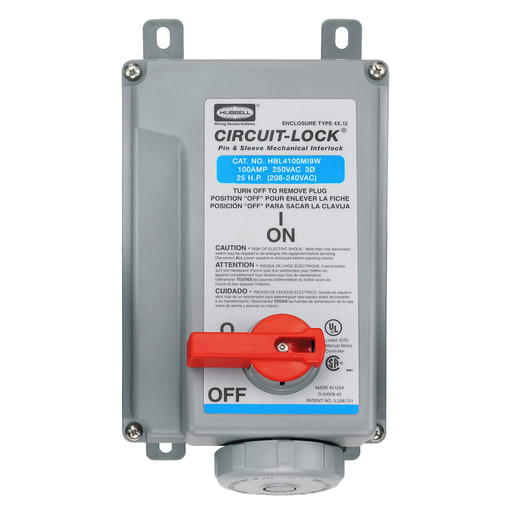

Hubbell Wiring Device - Hubbell HBL4100MI9W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 100A 3P4W, 3ø 240V, IP67, NEMA 4X, 12
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585405896
Amperage - 100 Amp
Applications - High Ampacity Connections
Catalog Number - HBL4100MI9W
Color - Blue
Packaging
1 ea
EAN
00783585405896
Part #
121588
Catalog #
HBL4100MI9W
Commercial reference
HBL4100MI9W
12-Digit UPC:
783585405896
Amperage:
100 Amp
Applications:
High Ampacity Connections
Catalog Number:
HBL4100MI9W
Color:
Blue
Conductor Size:
3-1/0 AWG
Country of Origin:
USA
Current:
100 Amp
ERP_productname:
HUB HBL4100MI9W PS, IEC, MECHINT, 3P4W, 100A 3P 250V,W/T
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
7.7 Inch
Length:
14.8 Inch
Material:
Thermoplastic
Mounting Type:
Screw
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Size:
Standard
Sub Brand:
Pin and Sleeve Devices
Tc Connection:
Pressure Plate
Type:
Watertight, Unfused
Voltage:
240 Volt
Wattage:
25000 Watt
Widths:
10.800 in
Wire Size:
3-0 AWG
SoneparProductId:
SKU_US_30051772
