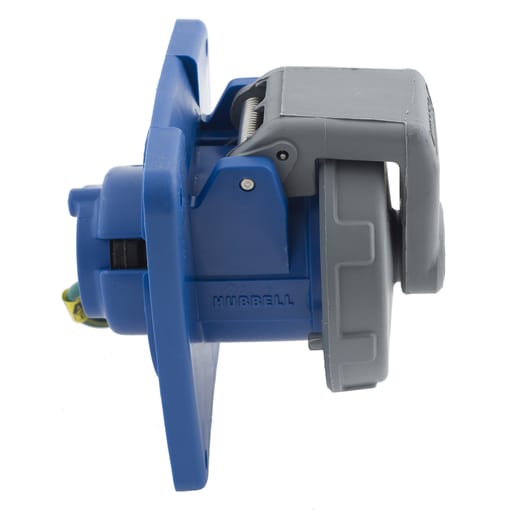

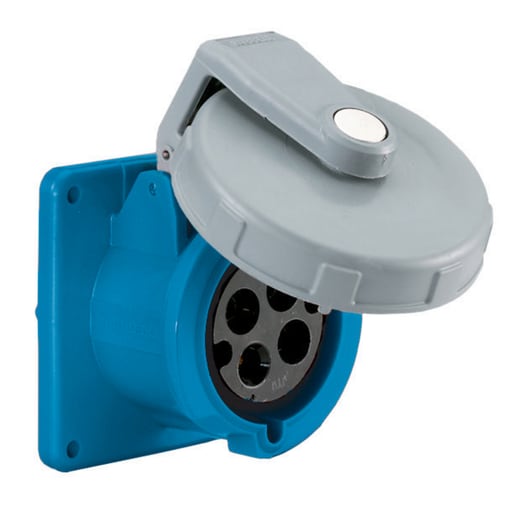

Hubbell Wiring Device - Hubbell HBL4100R9W 3ph 250V 3P4W Watertight Receptacle, Pin & Sleeve
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783585404110
Amperage - 100 Amp
Applications - High Ampacity Watertight Connections
Catalog Number - HBL4100R9W
Color - Blue
Packaging
1 ea
EAN
00783585404110
Part #
217400
Catalog #
HBL4100R9W
Commercial reference
HBL4100R9W
12-Digit UPC:
783585404110
Amperage:
100 Amp
Applications:
High Ampacity Watertight Connections
Catalog Number:
HBL4100R9W
Color:
Blue
Conductor Size:
3-1/0 AWG
Country of Origin:
USA
Current:
100 Amp
ERP_productname:
HUB HBL4100R9W IEC RECP 3P4W
Family Brand Name:
Hubbell Wiring Device-Kellems
Heights:
5-3/4 Inch
Length:
7 Inch
Material:
Thermoplastic
Mounting Type:
Screw
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Size:
Standard Sized
Sub Brand:
Pin and Sleeve Devices
Tc Connection:
Pressure Screw Terminals
Type:
Single Flanged
Voltage:
250 Volt
Wattage:
25000 Watt
Widths:
6.400 in
Wire Size:
3-0 AWG
SoneparProductId:
SKU_US_25761119
